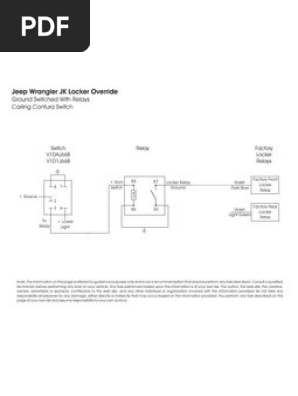

Rubicon locker wiring diagram. Independent locker control by ken white used with permission independent control of the front and rear lockers is accomplished by adding 2 single pole single throw spst switches some jumper wires and connectors to the existing axle lock switch andor wiring located in the center console. The new switches mount just below the driver side ac vent and are much easier to locate than the old ones above the shifter lever. A 12 volt air compressor 24 volt also available engages the unit in approximately 1 second and can be engaged at any vehicle speed. Click for a larger image. Ive posted the attached wiring diagram on this thread before but it has been a while. Locker switch relocation i want to move my existing locker switch 07 rubi to the new set of switches that come with the new 11 rubi.
Rubicon locker air pump. Rubicon locker pump wiring. I do not have a diagram to show the wiring. Rubicon locker wiring diagram i plan on doing one of these on my rubi. Tj wrangler technical forum. Rubicon locker air pump wiring.

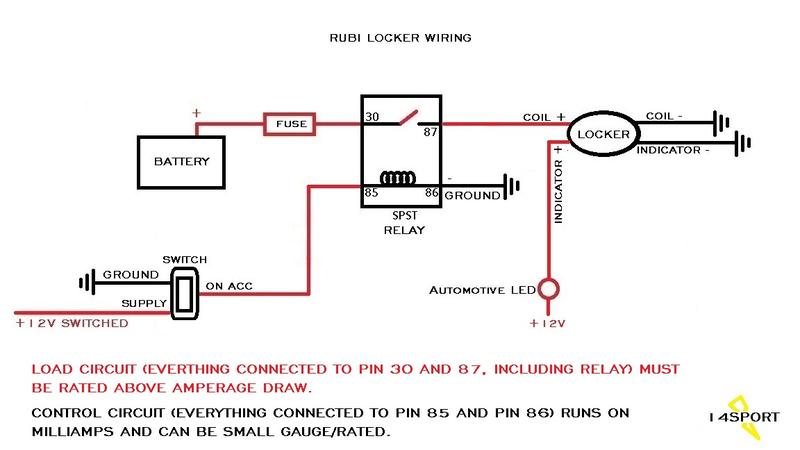

The new jk is very dependent on its computer system and the locker work around is not nearly as simple as a hot wire. The diagram is for a locker switch with an indicator light to show when it is actually locked. This modification is based on this wiring diagram. Since i will not need a locker in 2wd as it has posi i am going to jump the wires so i can operate the lockers in any 4wd position. 100 drive to each wheel when the unit is locked up. Rubicon axles have an internal switch for that purpose.
The arb air locker is a unique air operated unit for which the locking action is controlled by the driver with a push of a button inside the cab. Tj wrangler technical forum. Rubicon locker pump relocation. Tj wrangler technical forum. Here it is again so you dont have to search for it.
