Deadped Vespa Wiring In A Nutshell

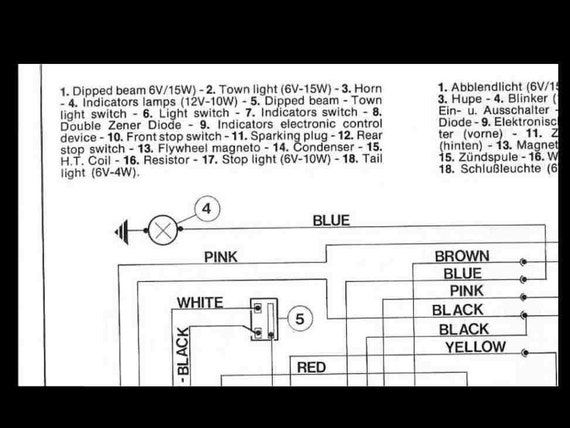

Piaggio ciao wiring diagram. The wiring diagrams below come from 1 original owners manuals 2 service manuals 3 supplement sheets 4 parts manuals 5 actual mopeds wirings or parts new or used or most often 6 a combination of most of those. 5 each online or download your piaggio or vespa manual here for free. The manuals and sheets were in the wall of printed material from myrons mopeds buyouts of over 20 other moped shops. Vintage moped manuals wanted. We looking for either quality pdf copies or original owners manual booklets literature service and repair manuals and any other useful information that we can upload into our manuals and technical section and share with our readers and visitors. I show how to determine which wire is which using a multimeter while giving a general overview of the engines electrical system.
Vespa ciao and bravo ciao and bravo ciao and bravo w turn signals vespa si grande with blinkers from owners manual grande without turn signals from owners manual. American models post 78 sported vespapiaggio down the tank and the ciao typeface was located on the plastic sidecovers. This is my favorite way to wire a vespa and it applies to ciao bravo grande si and most vespa powered mopeds. It has always been our policy that copies of these types of materials be shared and never sold. American ciaos manufactured pre 1978 are noticeable by the emblem on the side of the tank with the ciao logo. Ciao motorcycle pdf manual download.
Free piaggio and vespa motorcycle service manuals for download. Making these wiring diagrams was difficult and took over 150 hours of study. I also show how to properly hook up all the components. The vespa logo generally appeared as a sticker on the rear of the sidecovers. Honda mb5 modified wiring diagram honda p50 honda gyro tg50 honda c70 passport honda c50c65 honda c50mc65m honda s50s65 1959 65 honda c100 honda nc50 express. View and download vespa ciao service station manual online.
Original wiring diagram 78 80 ciao with blinkers 6 wire magneto with internal ignition ground. This table of piaggio part numbers contains most electrical parts on most us models. Some piaggio scooter manuals pdf wiring diagrams are above the page nrg typhoon zip power dd dt purejet. So this is your whole electrical system you may have another coil for turn signals points condenser lighting coil and ignition coil. After the war ended enrico the son of the founder of the company rinaldo piaggio decided to start production of light 2 wheeled vehicles which are so.
