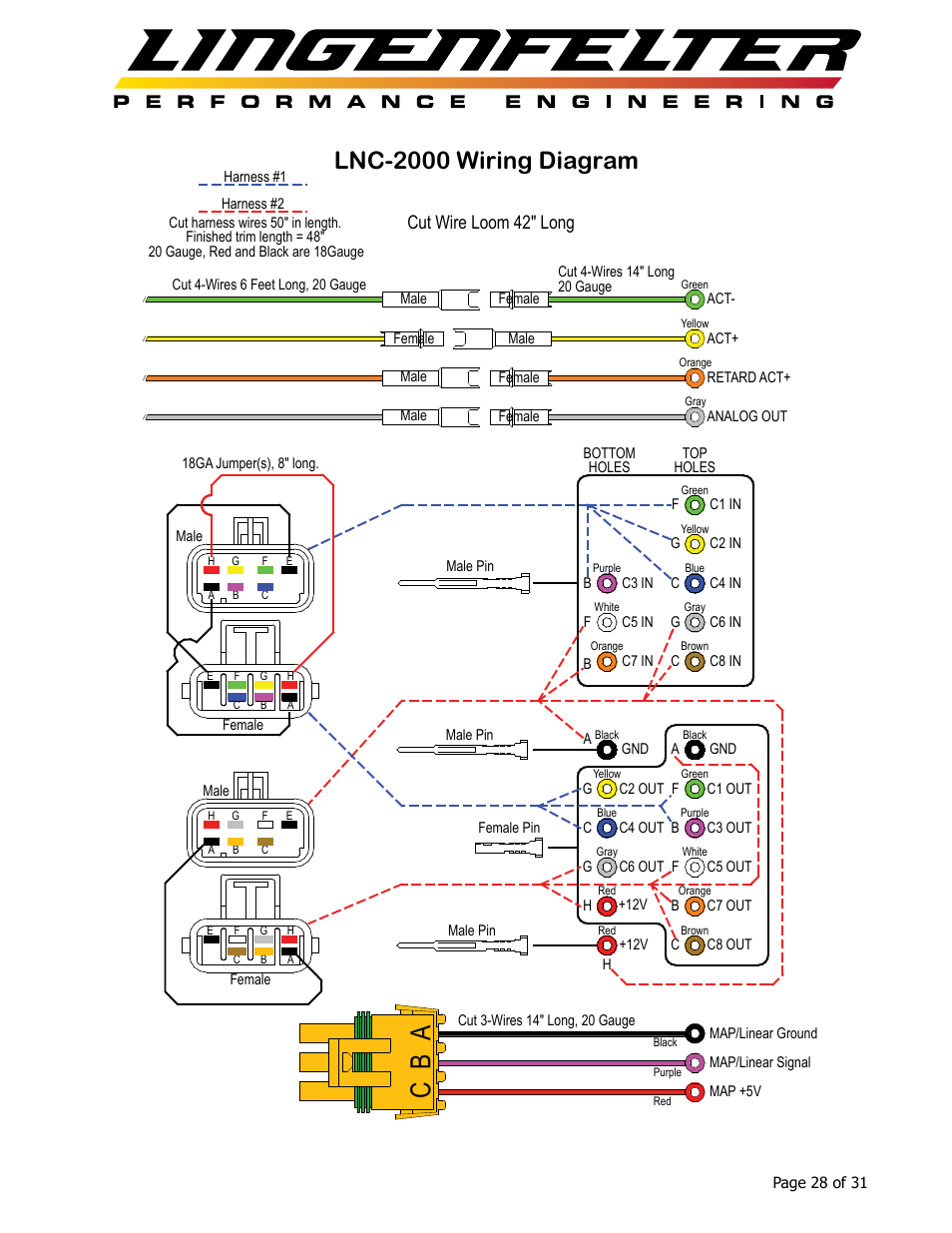

Lnc 2000 wiring diagram. The harness from the car that normally would plug into the coils is plugged into the new harness and the new harness is then plugged into the coils. What wires are the activation inputs for the senior swing. In turbocharged applications the lnc 2000 can also be used to retard the timing in order to build more boost at the line. The lnc 2000 are sealed but are not rated for high pressure wash use caution if power washing near the lnc 2000 controller page 3 of 28. The 8310 846 761462 00 wiring harness included with the 8310 877 safety sensor is us. Ls1 motor and lnc 2000 wiring question w nitrous retard.
Swing parts bag 518 and has 4 wires in it black white yellow gray. The current digital control box activation input wiring harness 761464 00 is included in the sr. The diagram you are talking about that says to cut the wires is for a 1997 2002 camaro or firebird clutch pedal switch the starter safety switch and other vehicles that use that type of clutch pedalstarter safety. Featuring two completely independent stages of nitrous control each with its own throttle position activation switch and progressive ramps. Rpm onoff control eliminates the. Discussion starter 1 jul 20 2014.
Ive seen a few wiring diagrams on tech for this when i get to the point of getting the system all hooked up i will use the lnc and mini progressive together. Got a question i have a 02 camaro stock pcm and nos mini launcher. Pages 12 to 28 for specific wiring diagramswhile we have tried to cover most configurations many different possible wiring methods exist too many for us to. Lq4 forged 408 1235cr afr 230s re worked by fti cam motion low lash solid roller fti ported fast 92 kooks 1 78 391s blah blah. Show full signature 04 qsm m6. Joined jul 18 2010 97 posts.
This allows the lnc 2000 to intercept the signal being sent by the pcm and modify it to retard the timing. 2000 formula ls1t56 lnc 2000 launch control dem. Jump to latest follow 1 7 of 7 posts. Lnc 2000 can also be used to retard the timing at the line to build boost in turbocharged vehicle applications. See pages 11 to 17 for specific wiring diagrams. Nitrous oxide systems is proud to announce their new mini 2 stage progressive nitrous controller.

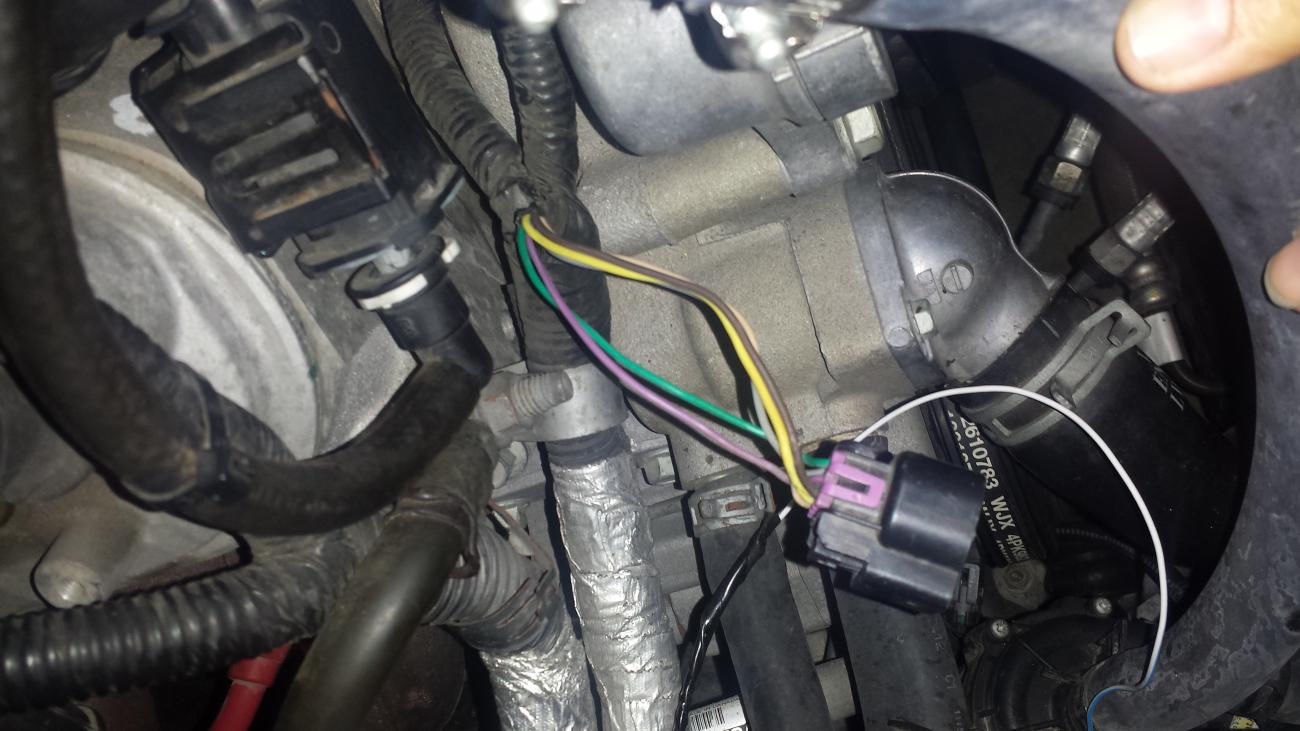

It allows you to get the most out of your nitrous system and put more power to the ground when traction is at its best. Lnc 2 step wiring to clutch on mt 5th gen camaro 2010 2013 do not cut the clutch position sensor wires on a 2010 2013 camaro. Sometimes referred to as a 2 step or launch controller the lnc 2000 adjustable rpm limiter and timing retard controller can be used to provide consistent launch rpm off the line in drag racing and other standing start racing applications.
