Intrinsically safe barrier wiring diagram. Wires from these modules pass through the duct with the blue cover photo courtesy of phoenix contact inc. All io is passed through the intrinsic safety barriers. It shows the components of the circuit as streamlined shapes and the power and signal connections in between the tools. Relays barriers wiring diagrams. The basic components that make up most intrinsic safety barriers are a fuse zener diodes and a resistor and are shown below in this simple electrical diagram. Intrinsically safe barrier wiring diagram electrical earth loop to structure steel by a 70 mmsq cable in general used the earth bus bar is made from copper and has 1 ½ width and ¼ height.
Examples of non simple devices are transmitters. Wiring diagram images detail. It shows the parts of the circuit as simplified forms as well as the power and signal connections between the tools. Intrinsically safe barrier wiring diagram download variety of intrinsically safe barrier wiring diagram. They render non voltage producing sensors intrinsically safe for operation in potentially hazardous areas. If the field device does create or store energy that exceeds 12v 01a or 25mw then it is considered a non simple device.
A wiring diagram is a simplified standard photographic representation of an electrical circuit. Request technical help 1 cowles road plainville ct 06062. A wiring diagram is a streamlined standard photographic representation of an electrical circuit. It reveals the elements of the circuit as streamlined shapes and also the power as well as signal links in between the gadgets. They can be connected with any device having a dry contact limit switch magnetic switch. The answer to that question lies in the definition of intrinsically safe.
A wiring diagram is a streamlined conventional pictorial depiction of an electrical circuit. Wellborn assortment of intrinsically safe barrier wiring diagram. The is isolators are the green modules that are lit up. October 23 2018 by larry a. Intrinsically safe barrier wiring diagram building wiring representations reveal the approximate places as well as affiliations of receptacles illumination and permanent electrical services in a structure. Therefore the simple device is connected to the intrinsically safe barrier through the field wiring.

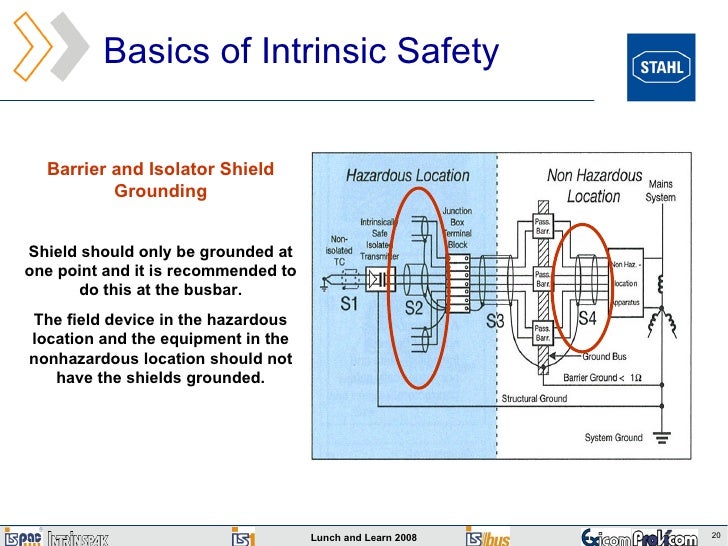

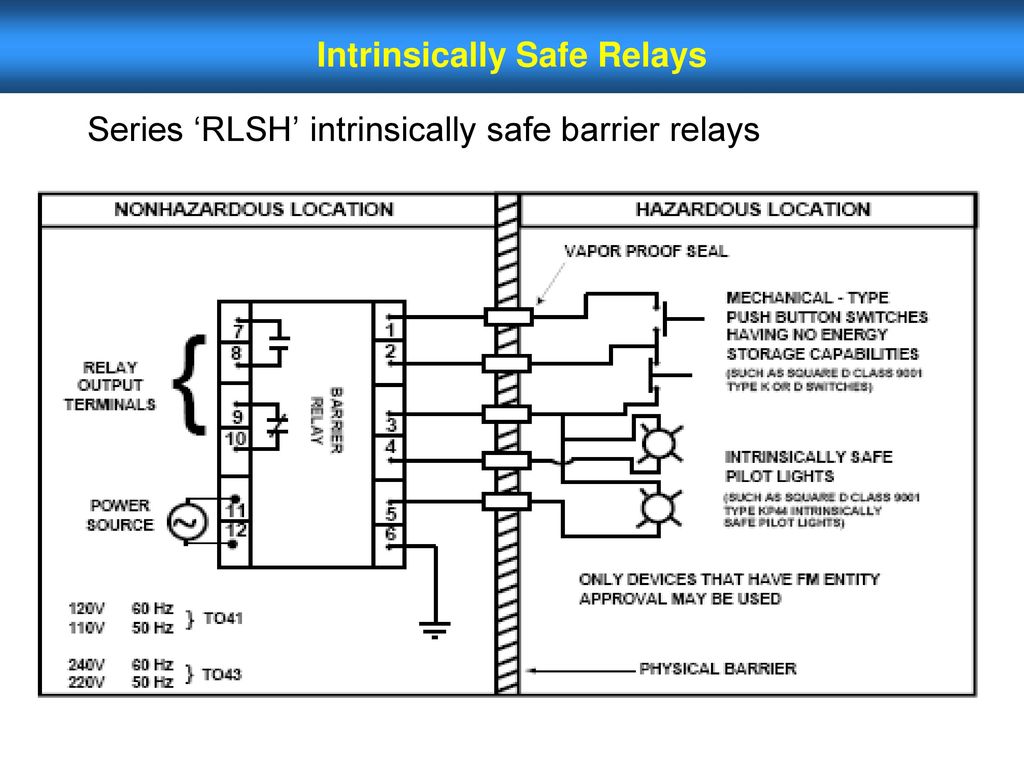

The circuit or instrument in the hazardous area operates normally until a fault condition occurs. Learn more about programmable electronic safe pak relay. Examples of simple devices are contacts thermocouples and rtds. Intrinsically safe relays such as the ny2 and the class 8501 type to relays act as an energy barrier limiting the voltage an d current available in the hazardous area.
