The e manage system is a universal piggy back type unit which taps into most japanese factory ecu wiring by utilizing the existing sensors. Basic functions will allow the user to slightly alter factory injector duty cycle 20 at 5 preset rpm points by intercepting and altering airflow or map sensor signals.
The E Manage Thread Mitsubishi 3000gt Amp Dodge Stealth Forum

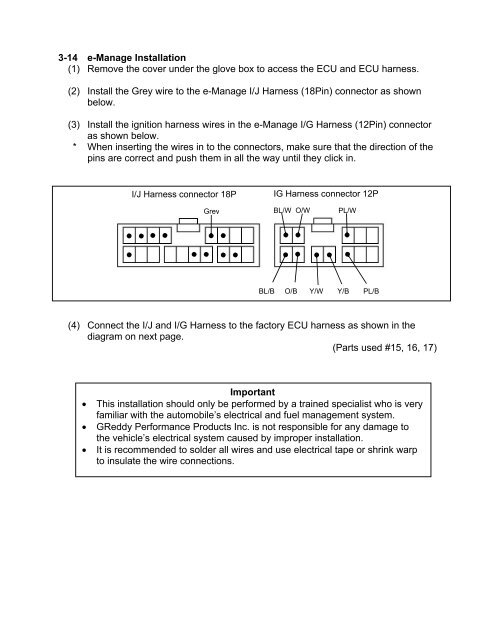

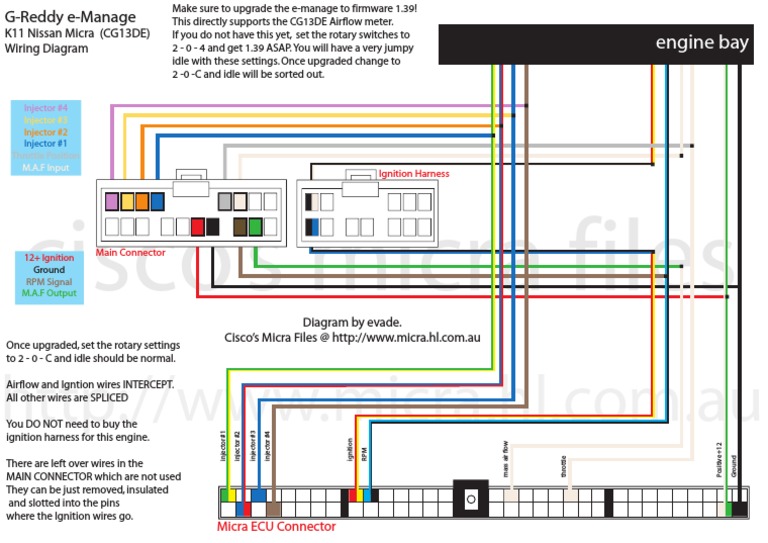

Emanage blue wiring diagram. Adptraining recommended for you. A laptop win98se pii with 196mg or better greddy support tool and a cable. E manage blue installation verification before strapping your rig to a dyno or hitting the track every effort should be taken to insure the e manage is working correctly. Greddy greddy emanage blue wiring diagram greddy emanage blue wiring diagram schematron g reddy emanage blue wiring diagram wiring diagram database greddy e manage ultimate installation manual download installation greddy greddy e manage jdm manuals. Emanage blue pin out diagram. This is a sure way to do that.
Injector circuit wiring diagram duration. Emanage blue pin out diagram. Skip navigation sign in. Emanage operation wire signal emanage connector emanage wire color ecu pinout ecu wire color connection type power red 102 or 107 red t solder ground black 101 or 106 black t solder rpm brown 21 black t solder throttle grey 19 greenwhite t solder airflow input light blue 10 from mas greenblue connector.
