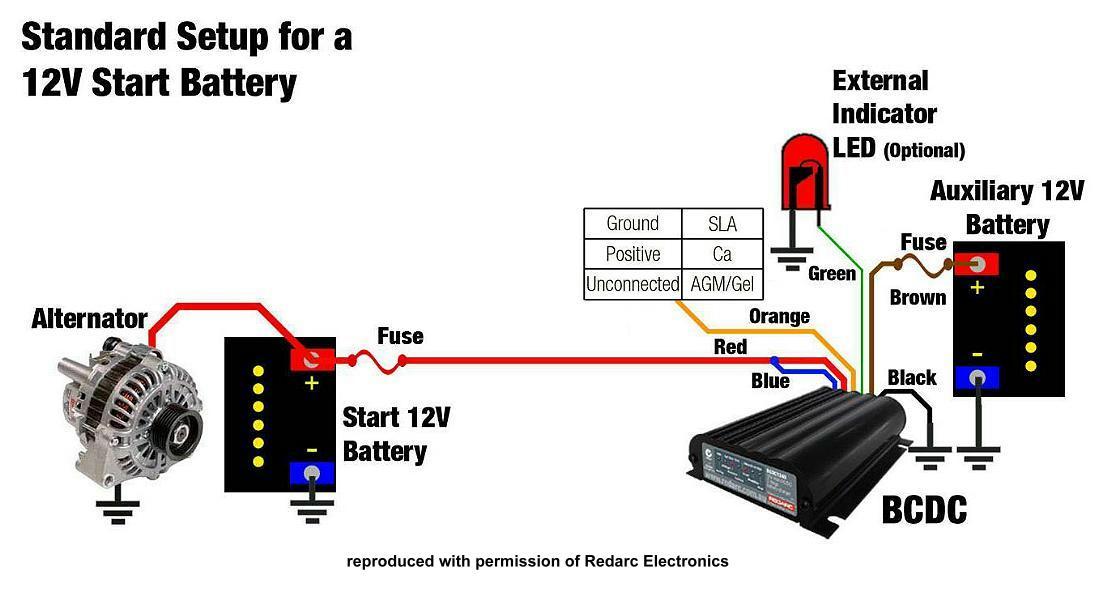

Bcdc1220 wiring diagram. Bcdc dual with jump start the new ultimate dual battery setup. The blue wire is provided to select the units input trigger behaviour. This kind of picture bcdc1220 and bcdc1225 12v and solar setup. Through the thousands of images on the internet regarding 12v changeover relay wiring diagram choices the best choices with best image resolution exclusively for you all and this pictures is one of photos libraries within our very best images gallery concerning 12v changeover relay wiring diagramim hoping you may like it. The bcdc dual battery charger will work with a wide operating range 9 32v giving the option of charging from both 12v and 24v vehicle systems. Wiring calcium may need to be selected to avoid damage to the battery.
See the diagram below please note the auxiliary battery 1 is being charged by a bcdc1220 which does not support solar. Wiring diagram for redarc bcdc1220. Wiring the wires on the bcdc1220 unit carry higher than 20 amp and it is important to make a good low resistance electrical connection that will not degrade over time. 211 bcdc1220 to charge from a 12v alternator simply connect the blue input trigger wire to the red input positive wire. Learn how to wire a bcdc1225. Page 10 installation crimp here.
Slip heatshrink over wire and insert. Jtsonline jts specialize in and are able to cater for all of your 12 volt 4wd and camping needs. Wiring the heavy gauge wires on the bcdc1225 unit carry peak currents of up to 35 amps and it is important to make a good low resistance electrical connection that will not degrade over time. Learn how to wire a bcdc1220 and bcdc1225 to two battery banks one with solar and one without. Bcdc suitable for vehicles without low voltage alternators. See the diagrams below.
Alternatively the blue input trigger wire can be connected to the vehicle ignition. Bcdc1240 with 12v and solar inputs and jump start feature. How to wire a redarc bcdc1225. Wiring calcium may need to be selected to avoid damage to the battery. The bcdc1220 ign features a lower voltage setting so it can continue to operate with a low input voltage from the alternator. Redarc bcdc1240 wiring guide.
See the diagrams below. This entry was posted in 12 volt technical articles wiring diagrams and tagged technical wiring diagram. See wiring diagrams for our range of in vehicle battery chargers. Learn how to wire a bcdc1240. Ultimate dual battery setup for winching.
