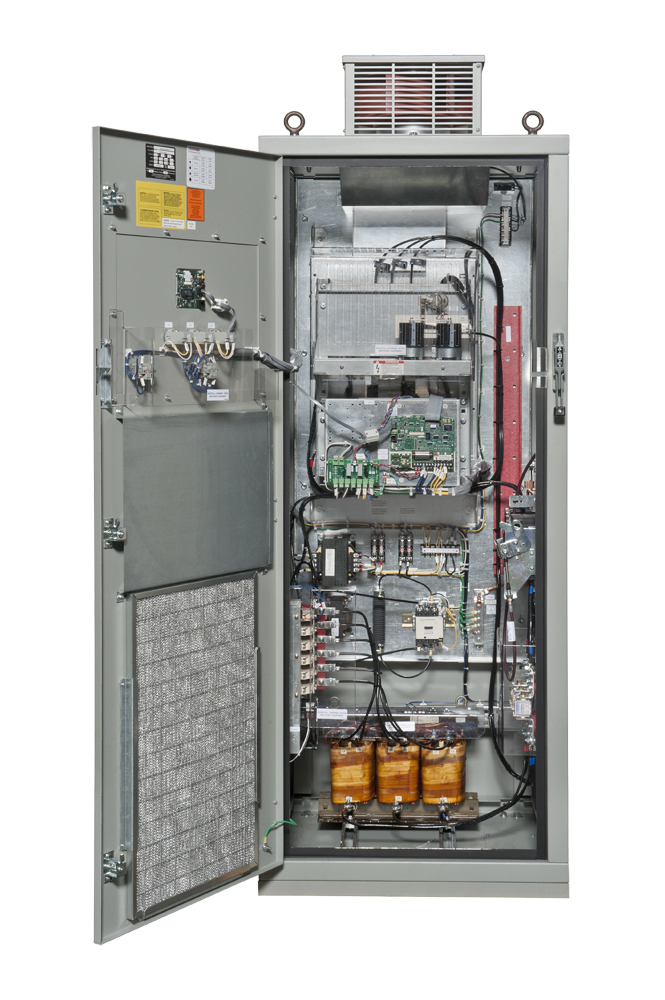

18 pulse vfd wiring diagram. To comply with regulations different solutions should be considered. Vfd pwm waveform the diagram below shows a common waveform for a pulse width modulation pwm circuit in the vfd. A wiring diagram is a simplified standard photographic depiction of an electric circuit. The cpx series of variable frequency drives uses advanced 18 pulse clean power technology that significantly reduces line harmonics at the drive input terminalsresulting in one of the purest sinusoidal waveforms available. This isnt useful in a dc drive but works fine for ac variable frequency drive vfd. Learn the basic wiring of variable frequency drives vfd with our electrician steve quist.

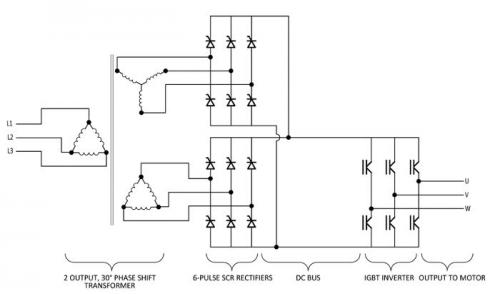

Emc filters powerflex 750 series products with totalforce control installation instructions publication 750 in100 see chapter 3 installation. Demand more clean power. It shows the parts of the circuit as streamlined forms and the power and also signal links between the gadgets. The drive has terminals available to connect a dc link choke. A typical diagram of a series connected eighteen pulse drive constructed from a standard six pulse drive two external rectifiers and a conventional 18 pulse isolation transformer appears in figure 1. In this video we used the very popular mitsubishi d700 series vfd showing single phase and three phase wiring instructions.
How to wire circuit protection breaker and fuse. Similarly 18 pulse vfd be could be triple in size and cost compared to a 6 pulse vfd. These terminals are used. Standard industrial drives both ac and dc use six rectifier devices to form a three phase full wave bridge. We strongly recommend using a certified electrician to set up your vfds. This type of converter is called a six pulse design because it draws current in six distinct pulses from the ac line.

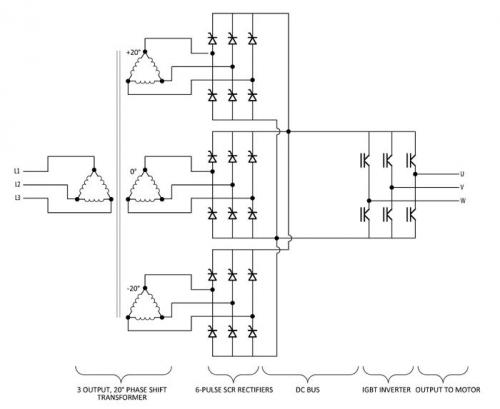

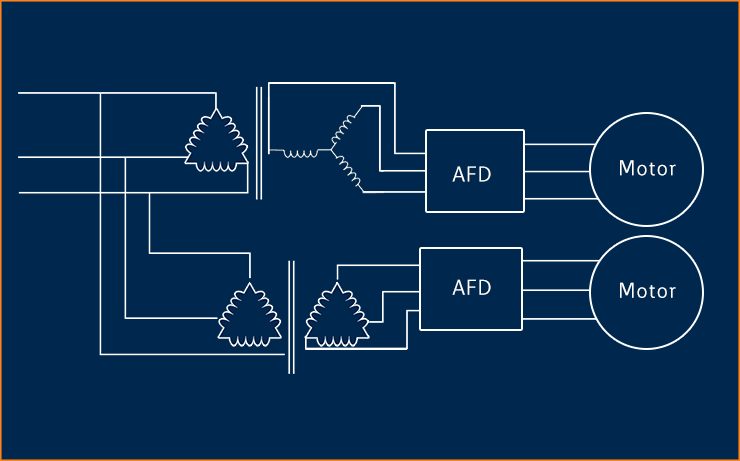

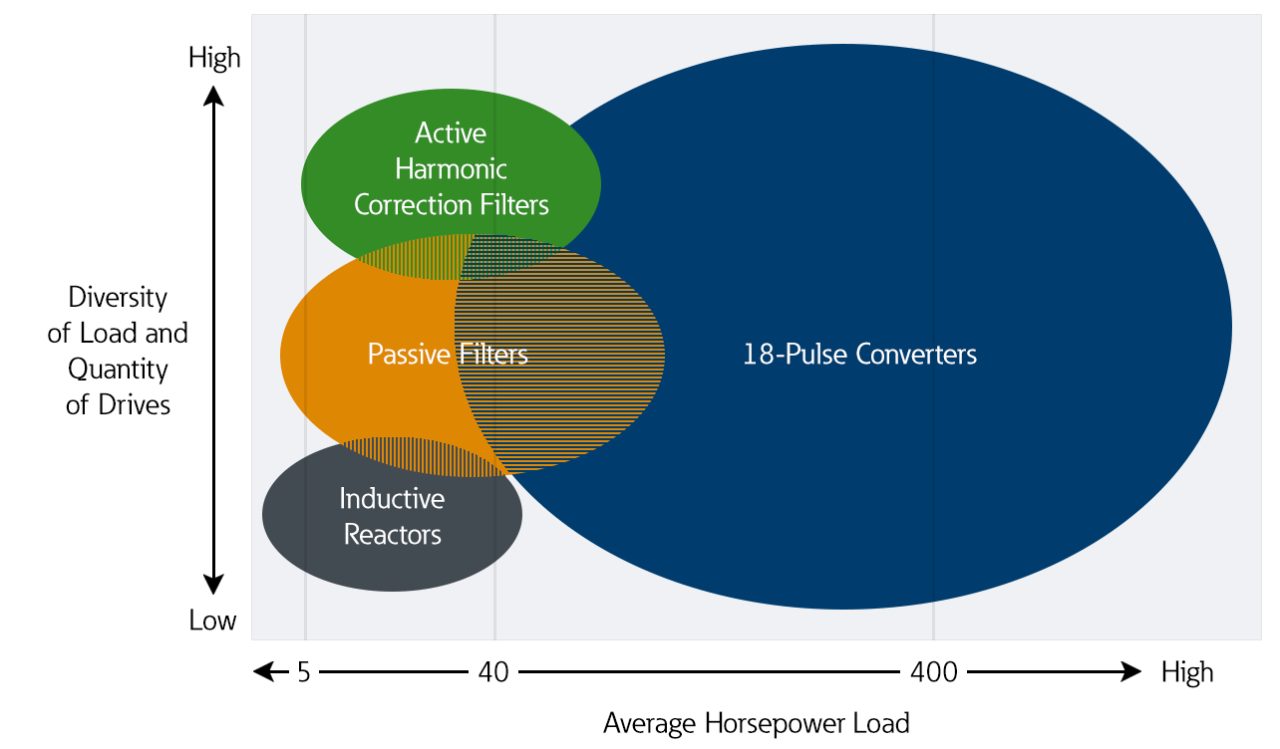

Wire and cable wiring and grounding guidelines for pulse width modulated pwm ac drives installation instructions publication drives in001 see chapter1 input power cables on page22. 6 pulse vfd built in dc line reactor 6 pulse vfd built in dc line reactor external harmonic filter higher pulse vfd 0 1 9 10 8 7 6 5 4 3 2 6 pulse vfd. They prevent upstream transformer overheating and overloading enabling the application of generators and other high impedance systems. Main circuit wiring variable frequency drive wire input to terminals l1 l2 and l3 for three phase input. 18 diodes turns 3 phase power into 9 phase power 18 pulse input current 18 pulse utility input voltage. Multi pulse vfds 18 pulse phase shifting isolation transformer provides dual outputs that go to 3 separate rectifiers.
Make sure to connect the ground terminal to an appropriate safety ground. Starting a vfd with 2 wire start duration. Published on oct 18 2018. Assortment of vfd wiring diagram.
