Do not install device beneath a humidifier or source of water. If the uvc device is installed near an air filter check with filter manufacturer for uvc resistance properties.
Field Controls Uv 16 24 Air Cleaner User Manual Manualzz

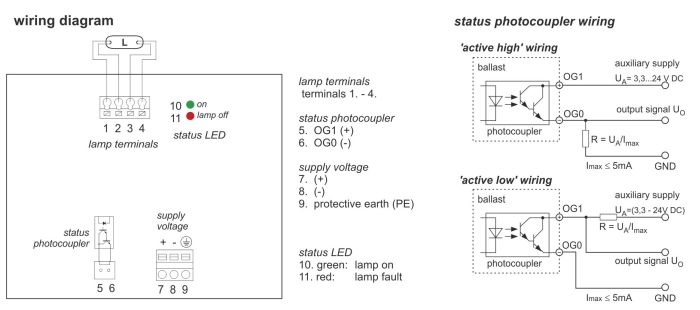

Uvc 24v wiring diagram. 1read and follow all instructions. Installed inside the hvac duct system it improves the air in the entire home. Use the wiring diagrams below to connect to power. The low voltage power supply 18 to 32 vac is marked er. Slightly pull on the wire to ensure it is locked into the terminal. Audio wiring diagram 1.
Do not expose wiring or plastic parts to uvc light. Improves air quality and protects heating and. When all the other components are properly installed connect the uv lamp cable to the power supply cable. Germicidal lights use intense rays of ultraviolet light to control and kill contaminants like viruses bacteria yeast and mold. All the led needs is approximately 33v dropped across it and 16 18ma flowing through it. Insert a stripped wire into the corresponding hole of the terminal block.
6 uv lamp connection 1. To remove a wire from the terminal block push in the orange release button below the wire and pull the wire out. This is the datasheet for the uv led which we are using. 2always be sure the unit is unplugged during installation or service procedures. Light models uvc24v uvc41ws uvc41wd. Er uv14 24v uvc lamp installation maintenance instructions when installing and using this electrical equipment basic safety precautions should always be followed including the following.
The datasheet specifies that this led should receive between 3v and 36v of voltage dropped across it. The high voltage 120 to 277 vac power supply is marked st. Eliminate pollutants from indoor air. Germicidal ultraviolet uv c applications wiring diagrams view the wiring diagrams for ballasts 10 0091 10 0127 10 0136 10 0137 10 0155 10 0201 10 0210 below or download a pdf ballast specification sheet which includes the ballast specs photos lamp types and wiring diagrams.
