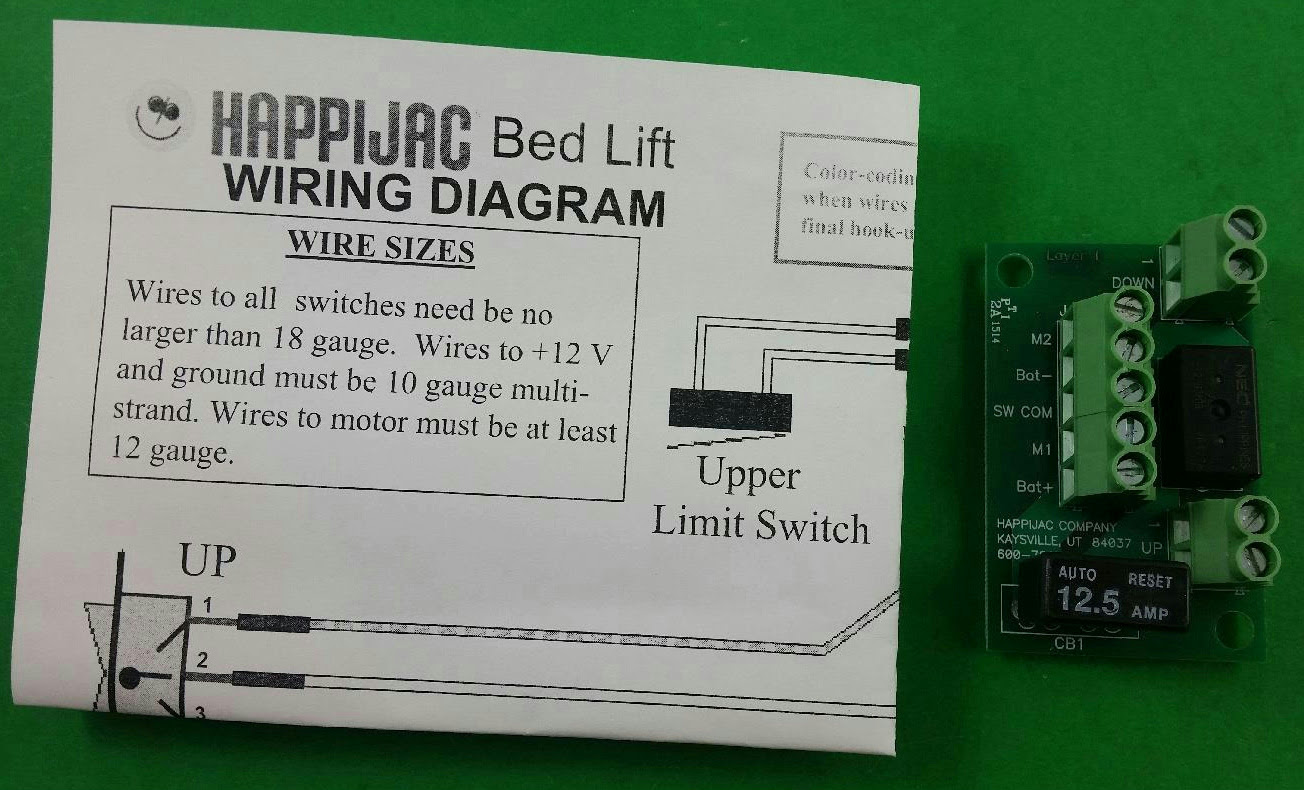

Happijac bed lift wiring diagram. Microsoft powerpoint pp wiring full page author. Wiring diagram all outputs are marked on the underside of the module 3 pin 2 pin rj 11 com. Replacing the motor contact happijac technical support at 1 800 231 7440. For more than 50 years happijac has been producing high quality products for. Plug play bed lift wiring diagram. Therefore the relay control module must be placed above the motor or on.
Emergency manual operation to manually lower the beds. Bed lift the brake must be released and the motor unplugged. Apply downward pressure to the bed platform. Attach motor to bed lift system by sliding motor rail the one with the micro switch wires protruding from the top and. 13 wiring diagram relay control module rvia wiring requirements restrict the length of exposed motor leads to a maximum of 10. From bed lifts and slide outs to tie downs jacks and toolboxes we have a solution for many of your rv needs.
Happijacs power bed lift supports up to two queen size beds in an innovative patented double bunk bed configuration. Happijacs power lift can accommodate one reversible sofa or a sofa single bunk. Bed will slowly drift downward. Wiring diagram place the switch over the hole and secure it with the screws provided. Bed lift wiring diagram wire sizes wires to all switches need be no larger than 18 gauge. We are committed to providing you with quality customer service so you get the most out of your happijac products.
Wires to motor must be at least 12 gauge. Unplug the motor 2. Make sure the switch is positioned such that both screws will securely hold the switch in place fig. To manually raise the beds. Any other use of this system will void. Voltage 12 vdc.
As traditional slide outs extend power bed lift wiring diagram plug and play. Wires to 12 v and ground must be 10 gauge multi strand. How can we help you. Rvia wiring requirements restrict the length of exposed motor leads to a maximum of ten 10 inches. Wiring the system 6 wiring diagram 7 relay control module 7 testing the system 8 trolley travel 8 bed lift operation 9 motor and brake 9 limit switches microswitches 10 bed lift control switch lci supplied switch only 10 relocating limit switches 11 manual operation 12 manually raise the beds 12 manually lower the beds 13. Color coding or wire marking when wires are drawn will make final hook up easier quicker.
Re apply brake at desired bed height. Release the brake 3.
