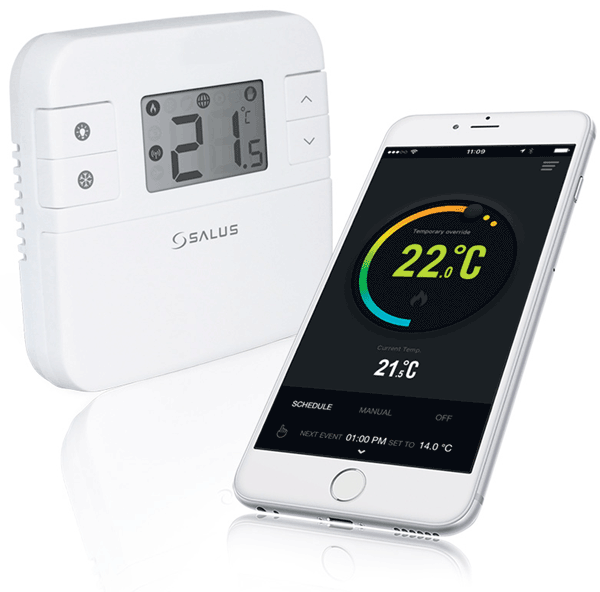

Accepts no liability for any loss or damage arising from any errors or omissions that may be inadvertently contained within this diagram. The rt310rf from salus controls is a stylish and accurate digital thermostat with an easy to read liquid crystal display lcd.
Model Rt310rf Installation Manual Pdf Free Download
Salus rt310rf wiring diagram. Please follow the new procedure below. Page 6 receiver terminals switch terminal common switch terminal mains live 230vac mains neutral wiring electrical diagram wall mounting fix the backplate to the wall align the front housing fit the front housing. You can check the date by looking for a small sticker with 4 digits on the back of the thermostat. Press lightly 06 rt310rf installation manual. Blue n brown no orange hw call c grey hw l e yellowgreen n hw motorised valve model nosspsbmv22 sbmv28 ac mains in nc hws no hw ch 12 13 15 14 11 10 9 8. Salus controls plc salus house dodworth business park south whinby road dodworth barnsley s75 3sp uk.
Pairing the st621tx to boiler module receiver. The thermostat provides the user interface and temperature sensing control. The rt310rf is factory pre paired as standard. Rt310 wiring diagram rt310rf wiring diagram rt310 rt310tx thermostat supply 2 x aa alkaline batteries 2 x aa alkaline batteries receiver supply 230 v ac. We have improved the test pairing on the rt310rf thermostat on models produced after 1018 october 2018. Pairing rt510rfrt510tx to the receiver post october 2018.
At the top edge. Articles in this section. 44 0 1226 323961. The receiver is used for wiring connections and heat on off control. The two units are linked together by a radio frequency rf signal.
