When wiring with two wires first jumper across a1 and b1and a2 and b2 respectively then connect pt100 sensors and to the rtd module according to the following diagram on the left. The best configuration for a specific application depends on a number of factors however the sensor configuration must match with transmitter otherwise leadwire resistance cancellation circuitry.
Rtd Sensor Pt100 Sheath 3 Wire
Rtd sensor wiring diagram. It does not produce an output on its own. The lead wire resistance is factored out as long as all of the lead wires have the same resistance. Otherwise errors can result. The following connection diagrams illustrate how to connect various rtd types to your daq device. Es is the supply voltage. Generally speaking field devices have inputs for 3 wire sensors to.
The resistance increases as the temperature of the sensor increases. In this article the possible wiring alternatives for rtd probes are explained. R1 r2 and r3 are fixed resistors. A wiring diagram is a streamlined standard photographic depiction of an electrical circuit. Normally a 2 wire rtd will lose accuracy due to the resistance in the cable which can be thousands of feet long. Then either solder closed the jumpers next to the rtd terminal block or put little wires in the right and left terminal blocks to short them together.
And rt is the rtd. 4 wire rtd signal connection connect each of the red leads on the positive side of the resistive element to the excitation positive and channel positive on the daq device. Wellborn assortment of rtd pt100 3 wire wiring diagram. This is the easiest wiring you can just use either terminal block slot on the sides for each wire. In this uncompensated circuit lead resistance l1 and l2 add. June 17 2019 by larry a.

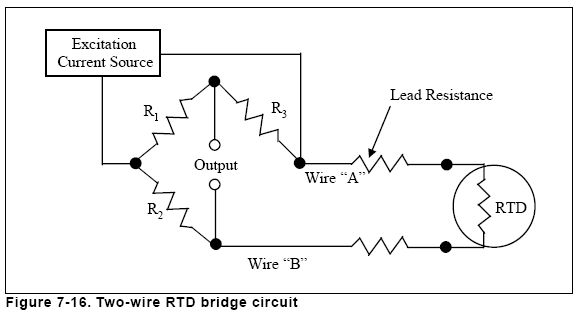

An rtd is a passive device. Sensors using the 3 wire construction are the most common design found in industrial process and monitoring applications. A1b1 a2b2 and c1c2. A 2 wire rtd configuration is the most useful with high resistance sensors or in applications where a great deal of accuracy is not required. Shown is a 2 wire rtd connected to a typical wheatstone bridge circuit. Difference between 2 wire rtd 3 wire rtd and 4 wire rtds rtds resistance temperature detectors are offered with 2 3 or 4 lead configuration.
3 wire rtd connections the 3 wire rtd configuration is the most commonly used rtd circuit design and can be seen in industrial process and monitoring applications. The 3 wire rtd uses 1 additional wire and the 4 wire rtd uses 2 additional wires to compensate for the wire resistance. There are 2 wiring methods for the rtd module and pt100 temperature sensors two wire and three wire connections. Rtd technical data see also. An rtd resistance temperature detector is a sensor whose resistance changes as its temperature changes. It shows the components of the circuit as streamlined shapes and also the power and also signal links between the gadgets.
The resistance vs temperature relationship is well known and is repeatable over time. Connect the black or white lead on the negative side for the resistive. Eo is the output voltage.
