The following diagrams show the recommended schemas for 2 wire and 4 wire configurations for farsync cards such as the farsync flex and farsync t2ee. The following document describes the functions of the pins on the rs 485 9 pin sub d connector used in serial communications.

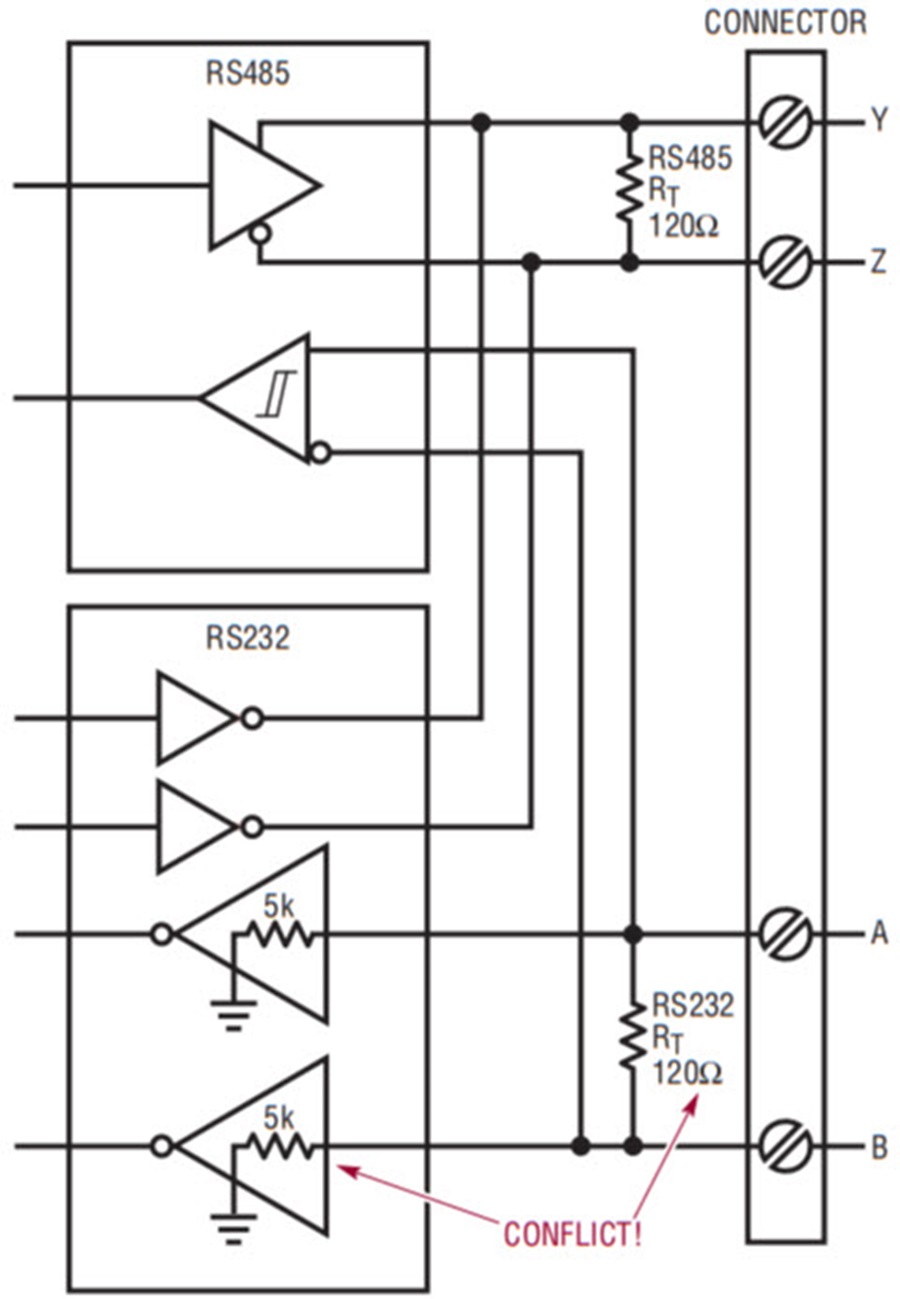

Multiprotocol Transceivers Combine Rs485 And Rs232 In A
Rs485 9 pin wiring diagram. Rs 485 4 wire full duplex diagram rs 422 4 wire full duplex. Figure 4 is a pin diagram for both 25 pin rs485 pinout half duplex and full duplex pinout connectors. Pinouts devices connectors. Because rs 485 signals are transmitted over twisted pair cabling the connections are less sensitive for noise. Pinout of rs232 to rs485 cable and layout of 9 pin d sub female connectorelectrically isolated rs485 communication interface to the pc serial port. Rs485 recommended wiring.
In addition to the data wires it is worth considering whether to use a shielded cable braidfoil connected to signal earth. 09013 page 3 of 3 references. Figure 3 is an rs485 wiring diagram for rs485 pinout db9 connectors. Switch settings for rs 422 4 wire full duplex switch position 1 rs 422 2 echo on 3 4 wire 4 4 wire figure 2. This communications mode is typically used for point to point communications over long. Serial interface pin assignment.
1 rs485 wiring diagram i the 2 cores in the twisted pair cable carry the data line plus normally red and minus normally green or b line and a line and are surrounded by the. 9 pin d sub female connector. Pinouts rs 232 and other serial ports and interfaces. Poor shielding or earthing is a very common wiring error. Pinout diagram for de 9 connector to perform a loopback test with no hardware flow control you will need to connect pins 2 and 3 for rs 232 and pins 4 to 8 and 5 to 9 for rs 422485. The de 9 connector is the most common serial connector.
Rs232 to rs485 cable pinout. The distances these signals are carried is greater due to differential signals. It can span relatively large distances up to 4000 feet. This connector is found on national instruments one and two port serial interfaces. The txd and txd lines carry transmit data while the rxd and rxd contain the receive data. M12 connections sub d 9 pin connector.
