Nmea connections to st2000 chuck raymarine moderator 05 02 17 0342 pm welcome to the raymarine forum riverrunner raymarine autopilots are not designed to follow a track. Item description 12 vdc power source wiring harness nmea 0183 compliant device item garmin wire function garmin wire color nmea 0183 device wire function power red power ground black data ground tx blue.
Nmea 0183 Raymarine
Raymarine nmea 0183 wiring diagram. However should a compatible chartplotting product receiving gps data be interfaced to the autopilots seatalk or nmea 0183 communications interfaces then commanding the chartplotting product to go to a. What is in the kit. To raymarine customers in these unprecedented times our primary concern is the health and safety of our employees their families and our communities. Raymarine 54 54ein yellow blue brown blue white white in green black black brown brown blue nmea 0183 connection rules. Positive in in connects to positive out out negative in in connects to negative out out or gnd positive out out connects to positive in in. Installing and connecting devices using the nmea 0183 interface standard.
Raymarines proprietary cable system for use in nmea 2000 networks. There are multiple versions of the nmea 0183 specification in use in the marine industry. Alternatively if you have the st60 repeater you will find a nmea output on the device which can connect directly to a sob com port. This sounder is capable of both nmea 0183 and nmea 2000 modes of operation however since this tutorial is about nmea 0183 we are limiting our discussion to this connection. Easily expanded using raymarine seatalk ng network components. Again garmin uses a common negative wire for both power and network so there is only one wire for nmea in and one for nmea out.
First the connector collars are retained on the product which allows for a smaller cable diameter making installations easier. The design provides two advantages. While still frequently used by vhf radios most other applications have migrated to nmea 2000. A single talker multi listener approach using serial data at low data rates initially 48kbps now up to 38kbps. More importantly the cable can include a sixth wire which allows for backward compatibility with seatalk 1. Based on the most recent guidelines from the uk government our facility in fareham uk is operating with a reduced staff and we are currently able to offer both service and repair.

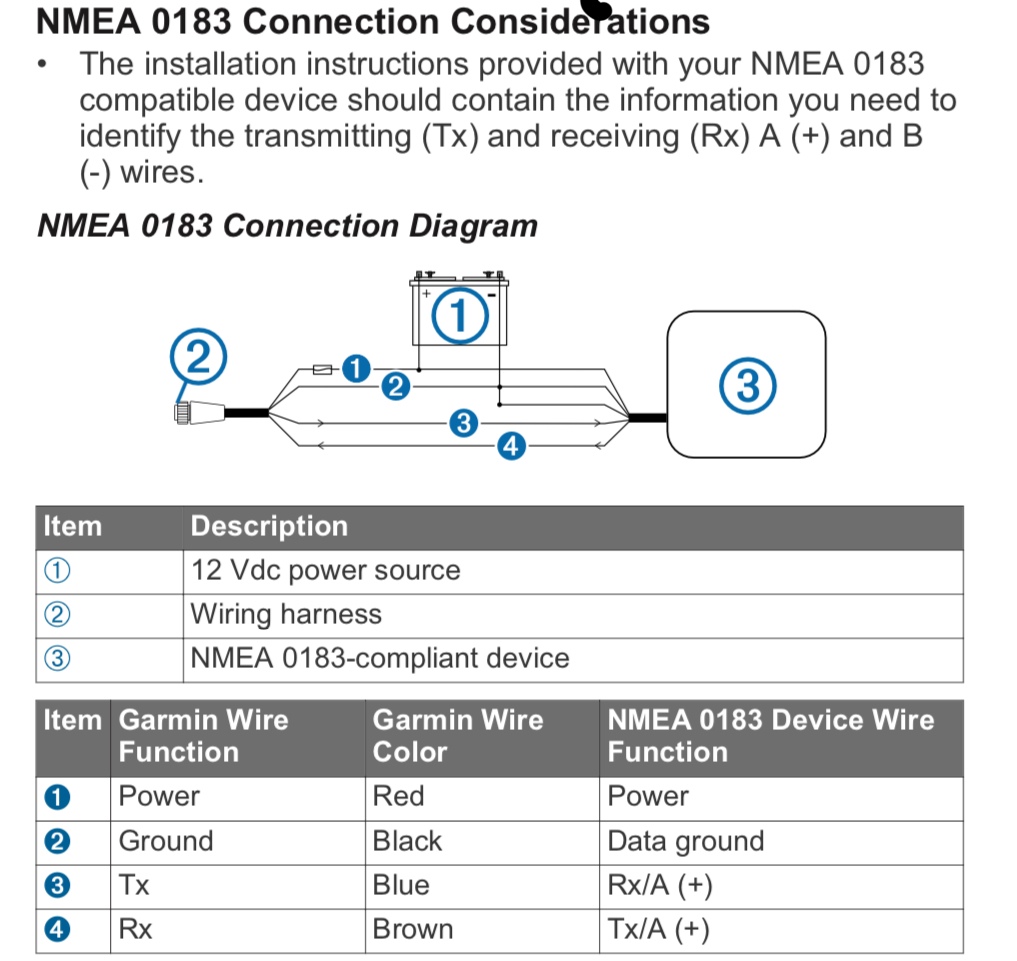

Nmea 0183 connection diagram. The first industry standard marine network specification released over 20 years ago. Seatalk1 is readily able to be converted to nmea 0183. Raymarine supply an accessory part e85001 for converting seatalk to nmea 0183. Prior to nmea 0183 version 20 including nmea 0180 and nmea 0182 the hardware employed a single ended interface implemented with one signal wire and a common ground based on eia 232. Also shipmoduls and brookhouses muxes also convert seatalk to nmea 0183.
The converter kit includes all of the necessary components to interface to seatalk 1 devices and establish basic seatalk ng connectivity on the vessel including.
