Prodigy p2 brake controller wiring diagram. Black wire carries 12v power and connects to the vehicle battery post through a 20 or 30 amp circuit breaker like pk54220pl or pk54530. A quick and easy disconnect feature allows users to remove the control when not in use and store in a supplied protective pouch. Important facts to remember 1. The brake control must be installed with a 12 volt negative ground system. However the diagram is a simplified version of this arrangement. The wire functions and connections are as follows.

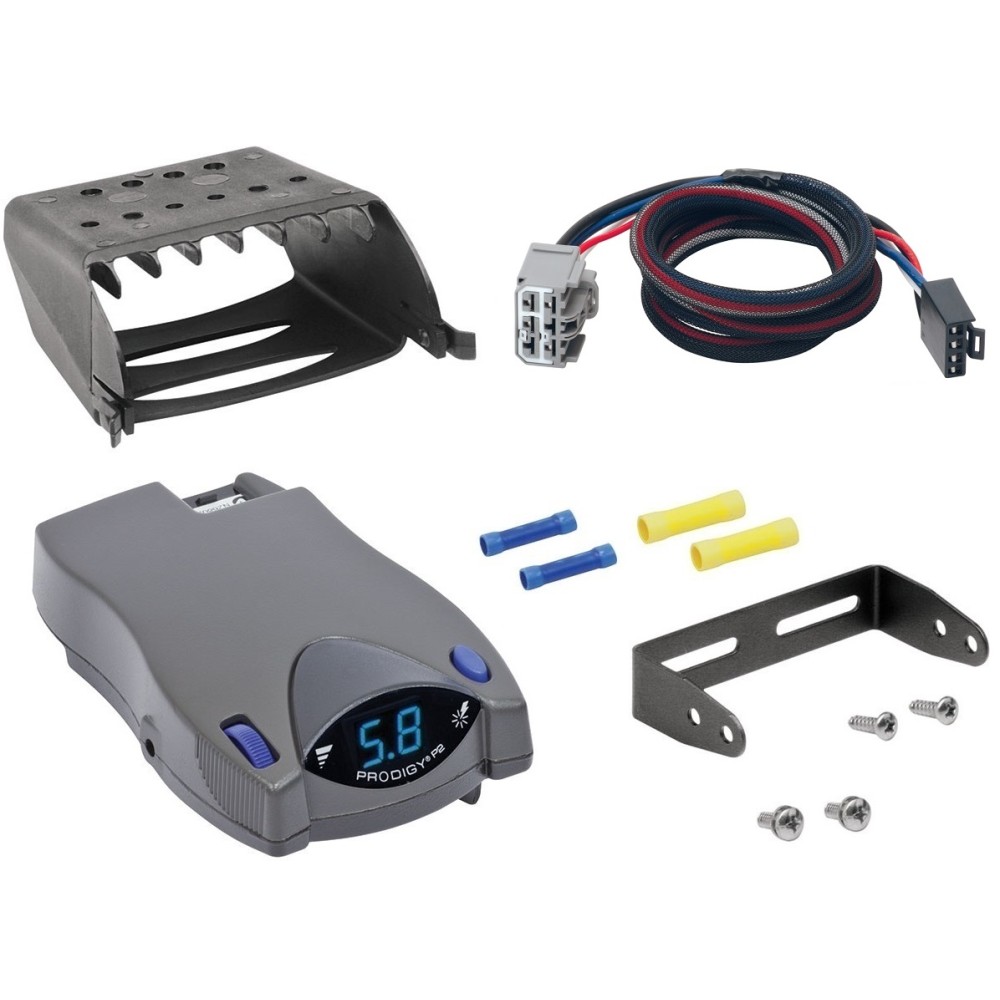

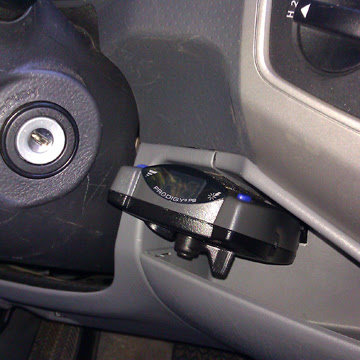

Insert prodigy brake control. Connector for wiring harness e. Tekonsha prodigy p2 brake controller electricity site prodigy brake controller wiring diagram the diagram provides visual representation of the electrical arrangement. A unique pocket mount allows for flexible mounting options standard mounting bracket included. This makes the procedure for assembling circuit simpler. It shows the components of the circuit as simplified shapes and the capacity and signal friends between the devices.
Prodigy includes a 3 ft. The p2 also cuts power to the trailers brakes when your vehicle is stopped extending the life of the magnets and brake shoes in the trailers brake assemblies. For 2 4 6 and 8 brake applications components of the brake control a. Pigtail connector for ease of connection when using a vehicles brake control wire harness. Aside from smoother more efficient braking that results from proportional application of stopping power the prodigy p2 also has a boost feature that gives you more initial braking. A wiring diagram is a simplified traditional photographic depiction of an electrical circuit.
Warning be sure to solidly. It shows the elements of the circuit as simplified forms as well as the power and also signal connections between the devices. Mounting hole 1 per side important facts to remember 1. Collection of prodigy brake controller wiring diagram. Trailer brake controllers like the prodigy p2 90885 use a 4 wire hook up. Tekonsha prodigy p2 wiring diagram wiring diagram is a simplified welcome pictorial representation of an electrical circuit.
The brake control for future reference. Mechanical egineering current development prodigy brake controller inside tekonsha p2 wiring diagram image size 800 x 800 px and to view image details please click the image. Do not mount or activate rf generating items cell phones two way radios near. White is ground blue is brake output to the trailer connector black is 12 volt power to the brake controller red is for the stop light switch. The wiring on the tekonsha prodigy p2 brake controller 90885 is as follows. Warning reversing black and white wires or improper wiring will damage or destroy brake control.
