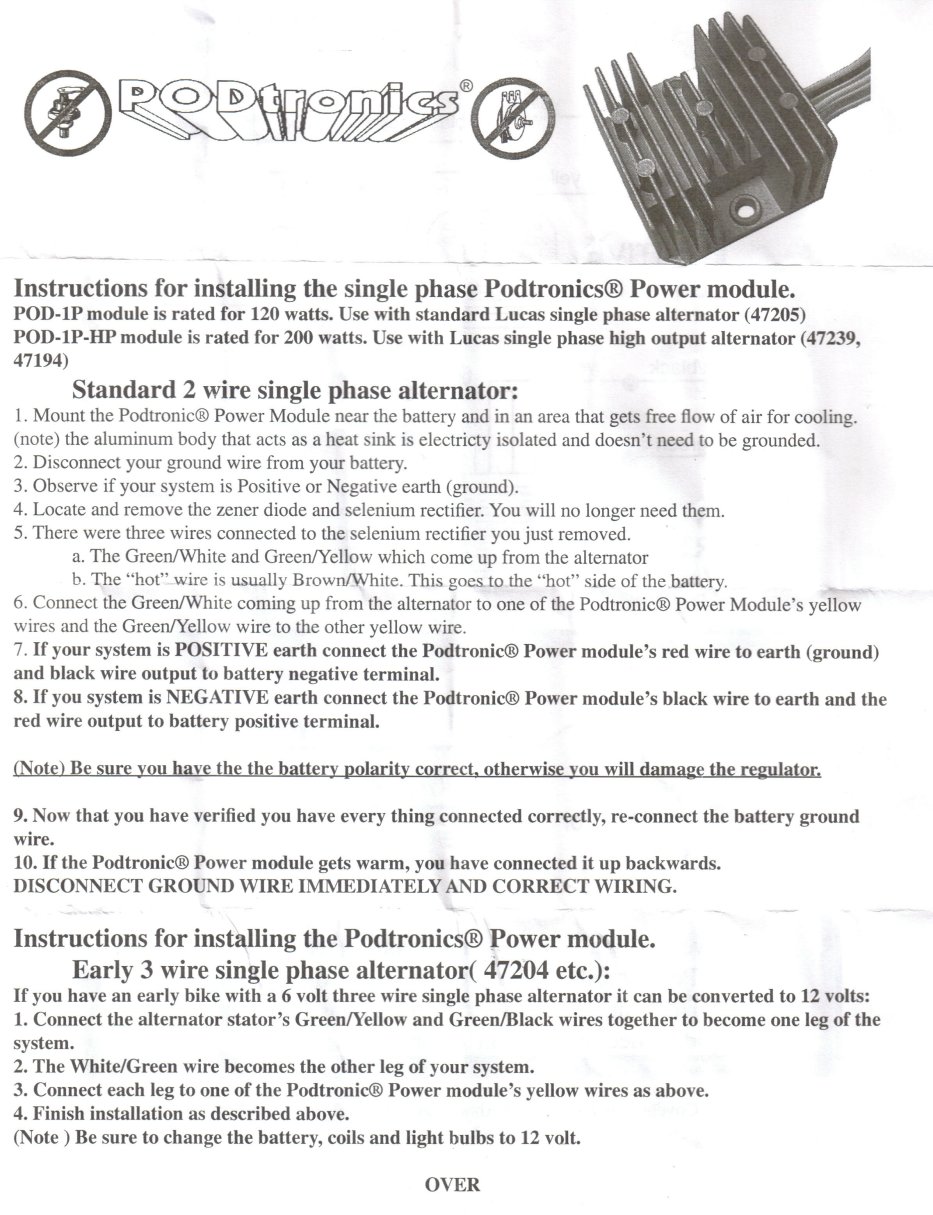

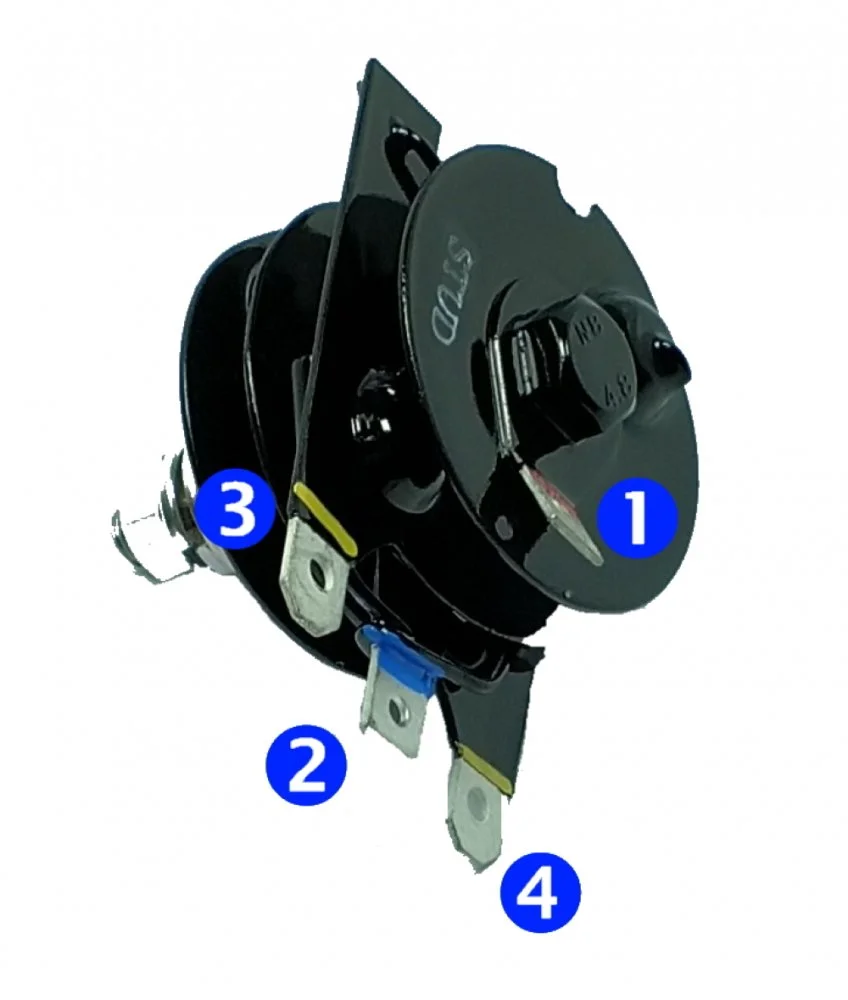

Podtronics wiring diagram. Triumph 650cc motorcycle simplified wiring diagram install instructions. If you have an early bike with a 6 volt three wire single phase alternator it can be convertedto l2 volts. The podtronics regulator rectifier replaces the troublesome lucas rectifier and zener diode on british motorcycles such as triumph bsa and norton. Pre 1971 ammeter in the headlight shell and wipac tricon type handlebar switch png 30661841 1971 three wires to the master switch png 30661841 1972 onwards four wires to the master switch png 30661841 1974 mk3 early bikes there were around 2000 bikes that were. Instructions for instalting the podtronics at hi power and max modules with early 3 wire single phase alternator 47204 etc for 12 volt operation. Can be used to convert older 6 volt alternators to 12 volts.
Here is a factory wiring diagram with the podtronics unit added into the circuit. Disconnect the ground wire from your battery. Find all your instructions and files here on our technical files page. Locate and remove the zener diode. Pre 1971 ammeter in the headlight shell and wipac tricon type handlebar switch png 30661841 1971 three wires to the master switch png 30661841 1972 onwards four wires to the master switch png 30661841. This diagram includes both the tri spark electronic ignition and the podtronics combined regulatorrectifier unit.
Disconnect ground wire immediatblyand correct wiring. I tested the ammeter on my other norton and it works fine. Will work with either 2 wire or 3 wire ac alternator. I am using a lucas 3 phase rotor with a podtronics regulatorrectifier. Single phase hi power regulator designed for new 180 watt stators. Can be used with either negative ground or positive ground.
I installed the podtronics unit on my 1969 norton commando 750. If your system is positive earth connect the podtronics red wire to ground and the podtronics black wire to the battries negaive terminal. Click here to return to rectifier page manufacturers instructions podtronics single phase replacement for lucas rectifier and zenor diode. Could you tell me if there is a problem with your diagram or should i simply re wire from scratch to get it working. Observe if your system is positive or negative ground. You will no longer need it.
Connect the greenwhite wire to one of the two yellow wires and the greenyellow to the other yellow wire coming out of the podtronics power module. Anyone know of a just the basics wiring diagram for a 75 commando. If you have an old 6 volt 3 wire stator you can convert it to 12 volt by to 12 volts also see diagram below. Podtronics regulator for triumph bsa norton page 1 install instructions. All wiring was run correctly according to your diagram but the ammeter no longer works.
