Wiring loxone tree a loxone cat 7 cable is recommended for loxone tree cabling. The greenwhite wire pair is used for the tree and the orangewhite wire pair for the 24v dc supply.
My Automated Home Richard Farthing S Green Open Source
Loxone wiring diagram. Green green led red red led. True future proof wiring for the smart home. Knowledge base cabling loxone tree wiring loxone tree cabling the loxone tree cable is recommended for loxone tree cabling. The white wire is wired to dq on the extension and the grey wire is wired to gnd. After a few seconds the left led will flash green if the 1 wire extension is already configured or orange if not. If it is the last extension terminate the loxone link with a 120ω resistor included with the miniserver turn on the power supply.
There arent many existing domestic applications of free form wiring with loxone tree being a flagship of this topology. Connect the 1 wire connector to the 1 wire bus. The shield of the cable does not need to be earthed. Connect the loxone link. This can reduce cabling up o 80 over traditional star wired systems and gives huge flexibility in upgrading and updating in the future. Knowledge base cabling all wiring accessories contents wiring tree devices connecting switches and actuators connecting blinds or curtains connecting lights to a dimmer connecting several dmx dimmers connecting temperature sensors connecting proportional 0 10v actuators connecting digital io actuators thermal example circuit protection connecting a 24v motion sensor connecting a.

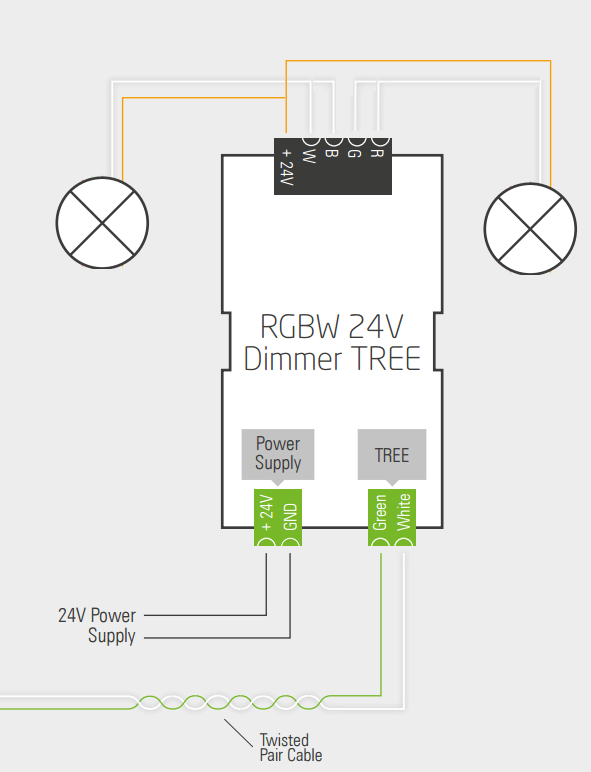

In the below diagrams you can see some examples of wiring loxone tree. The tree cable is suitable for all tree products whether motion sensors valve actuators or led spots. The remaining 2 wire pairs remain free and can be used for other functions. The greenwhite wire pair is used for the tree and the orangewhite wire pair for the 24v dc supply. The yellow wire is the common ground for both leds. The best comparison would be to the sensory and diagnostic wiring within cars where priorities are communication efficiency reliability and flexibility in wiring.
