Need to add a socket. This diagram illustrates wiring for one switch to control 2 or more lights.

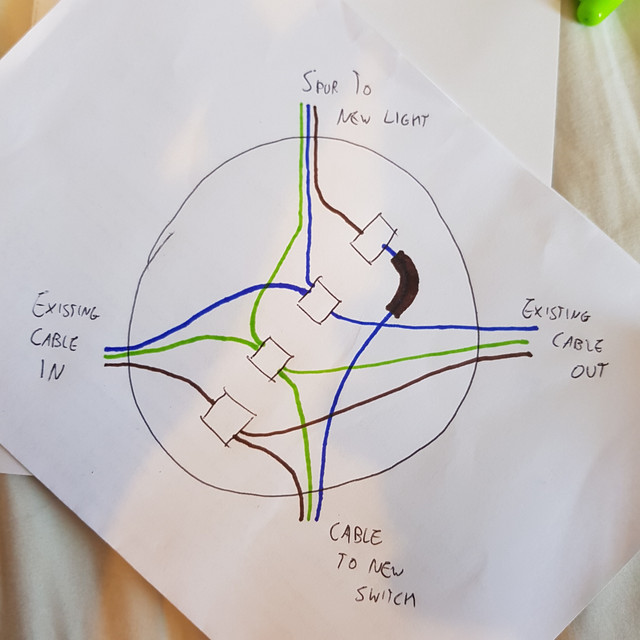

Loft Light Please Check My Diagram Electriciansforums Net
Lighting spur wiring diagram. Feed the spur cable into the junction box. If in any doubt on how to proceed. Multiple light wiring diagram. The neutrals are connected together using a terminal connector. Radial circuits are used for lightingthere is one lighting circuit on each lighting mcblighting circuits are usually on a 6a mcb or 5a fuse though 10a can be used with some extra restrictions now removed in the 17th edition of the wiring regs for large circuitshowever if the area served is large more 5a or 6a circuits would in most cases be preferable. One way of providing for this is to install a four terminal junction box in which the cable from a light and the cable from its switch can be connected to the circuit cable.
It includes advice on electrical spur wiring with diagrams so that you can find out how to wire up a spur plug socket or have a spur fitted. The hot and neutral terminals on each fixture are spliced with a pigtail to the circuit wires which then continue on to the next light. Connect the new socket or switch as shown in the appropriate wiring diagram in these fitting instructions taking care that only the copper. This project is about how to add a spur socket or additional sockets to an existing circuit. Prepare the cable route for the spur from the junction box to the new lighting point using 1mm 2 two core and earth spur cable. Instead of taking the feed wire from the consumer unit to the ceiling rose it is taken to the switch.
Each type of switch will have a different symbol and so will the various outlets. You will even find symbols showing the location of smoke detectors your doorbell. How to install a fused spur. This is an alternative way of wiring a lighting circuit. Wiring wall lights to ceiling lights the spur cable live brown connects to the live terminal block. The reason why the wiring of a lighting circuit is more complex than a power circuit is that each outlet or light fitting needs to be controlled by a separate switch.
Wiring diagrams a surface ceiling light will be shown by one symbol a recessed ceiling light will have a different symbol and a surface fluorescent light will have another symbol. Connect the cables as in the diagram ensuring that the load cable is connected to the appliance in use. The permanent live wire is wired into the switch and the switched live into the switched live terminal. Unscrew the junction box cover. Spur socket wiring how to add an electrical socket to a circuit. The source is at sw1 and 2 wire cable runs from there to the fixtures.
Make a diagram of where all the cores connect. Unscrew the ceiling rose or lighting circuit junction box and connect the spur cable to the loop circuit cable as shown in the diagram below. Prepare both ends of the cable and the cores.
