A number of our products include daytime running lights and below is a diagram for customers interested in wiring them up via a relay to allow them to turn off when the low beam headlights are turned on. We have set up both an instructional video an in depth blog post regarding wiring up your led lights to your vehicle.
Yz 4854 Fog Light Wiring Diagram In Addition Ford Smog Pump
Led drl wiring diagram. One of the key features of our headlights is to have the ability to run the drl strips in the day without having to activate any of your lighting controls manually. Led lights create a uniform projection that that ensu. How do i tap the wire for the led daytime running lights. Tap led daytime running lamp to any existing 12v power source such as parking lights fog lights or headlights. The led daytime running lights can be mount anywhere in front of the car. The bcm looks at the input from the ambient light sensor.
For headlights with activation light and sequential signal. These led lights are universal fit so they can fit any vehicle. Daytime running lights also known as drl are devices in front of a vehicle that switch on whenever a vehicle is moving forward. Tap led daytime running lamp to the battery using an automatic drl on. If it sees daylight and the parking brake isnt set the bcm provides ground to the control coil in the drl relay. As displayed in the below diagram the vehicle specific piggyback adaptors do not plug to the vehicles high beam globe but instead the main power plug for the headlight as a whole.

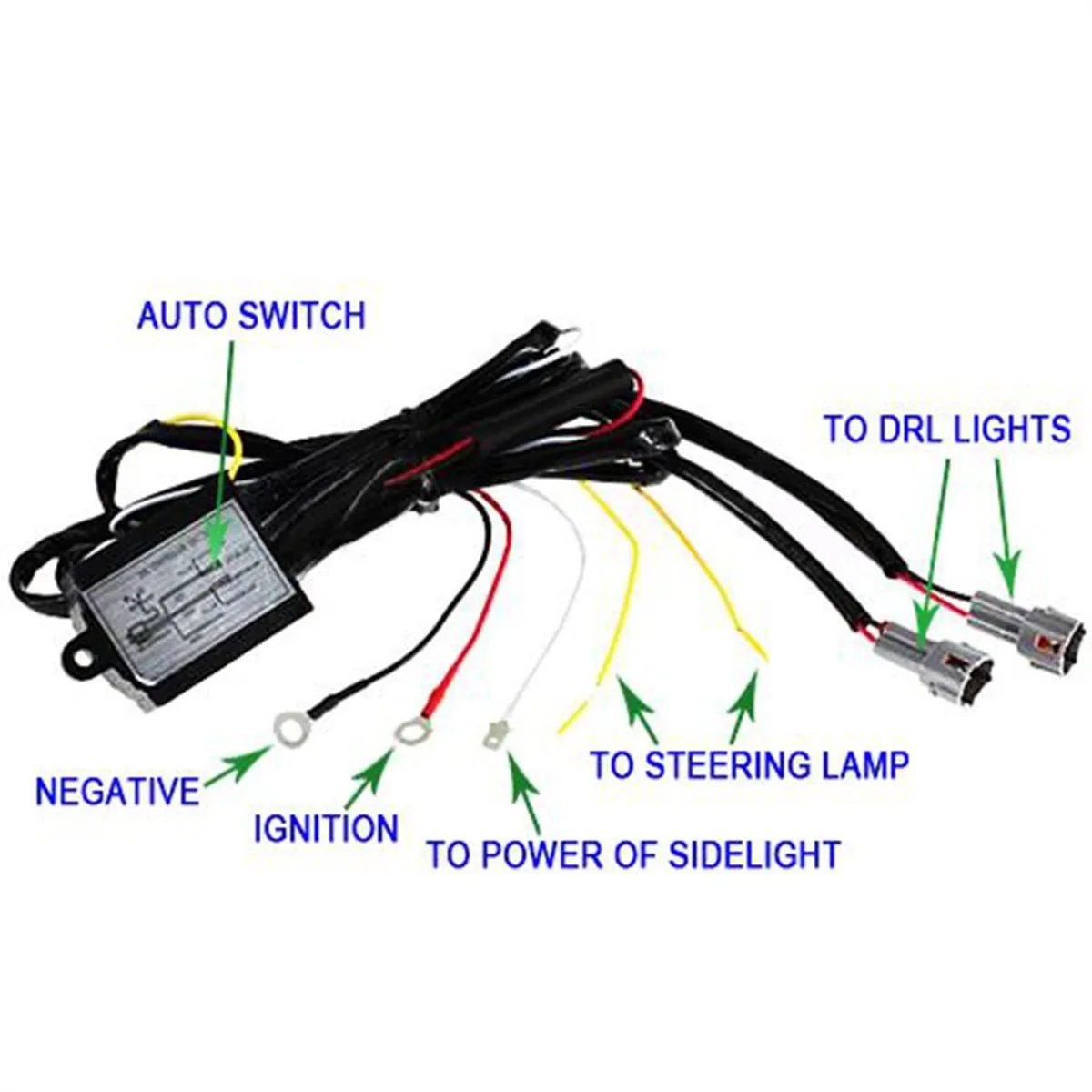

Led daytime running lights installation. In addition any local auto electrician should be able to set this up for you if needed. Drl wiring diagram the drl system is different. The way to do this is by wiring the harness that is included with your headlightsdepending on the headlights feature you get there will be two types of drl harness.
