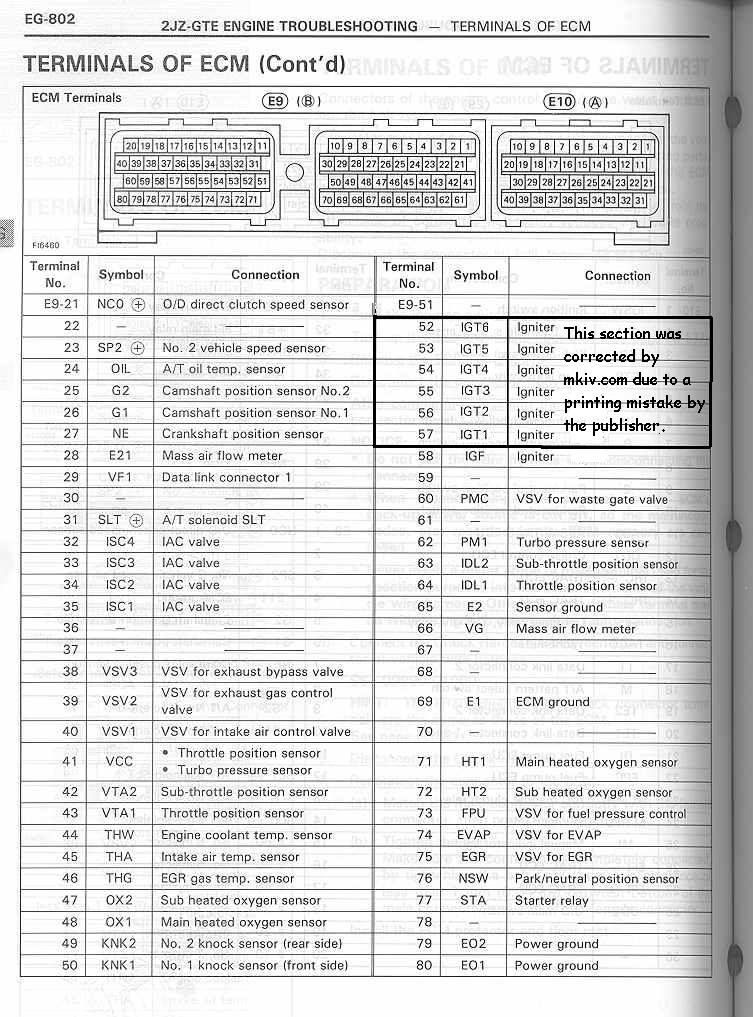

This wiring diagram manual has been prepared to provide information on the electrical system of the 1995 supra. Toyota supra jza80 aristo jzs147 2jz gte non vvti ecu pinout diagram pin description 80 pin wire pin description 40 pin wire 3 speed sensor 2 sp2 1 ignition switch igsw 4 ecu ground e11 2 speed sensor 5 cam position sensor g2 4 stop light switch 6 cam position sensor g1 5 exhaust gas warn light 7 crank position sensor ne 6 engine check light.
1993 1998 Toyota Supra Body Collision Manual
Jza80 wiring diagram. Jza 80 series for service specifications and repair procedures of the above models other than those listed in this manual refer to the following manuals. It shows the components of the circuit as simplified shapes and the faculty and signal connections in the middle of the devices. If youve found my work helpful and would like to donate a beer. Jza80 electrical wiring diagram book ewd175y usa 1995 introduction. You can save this photograph file to your own pc. Jza80 toyota supra 2jz ge engine loom to body loom pinout.
We also have some more figures connected to toyota electrical wiring diagram on please see the picture gallery below click one of the pictures then the. Jza80 toyota supra 2jz ge 90980 11555 engine loom to body loom plug orange this plug is located inside the passenger foot well and mates with male connector 90980 11554. This is the wilbo666 2jz ge jza80 supra engine wiring of a picture i get coming from the toyota electrical wiring diagram on package. Jza80 wiring diagram wiring diagram is a simplified good enough pictorial representation of an electrical circuit. Please right click on the image and save the graphics. Blue text indicates pins related to automatic transmission functions only.
This page provides information in regards to 2jz ge engine wiring as found in the japanese jza80 toyota supra.
