I did a search but am not coming up with much. Check the brown wire that goes to the inertia switch then see if inertia switch has power on both sides it could be just a bad switch.
Toyota Sienna Service Manual Fuel Pump Control Circuit

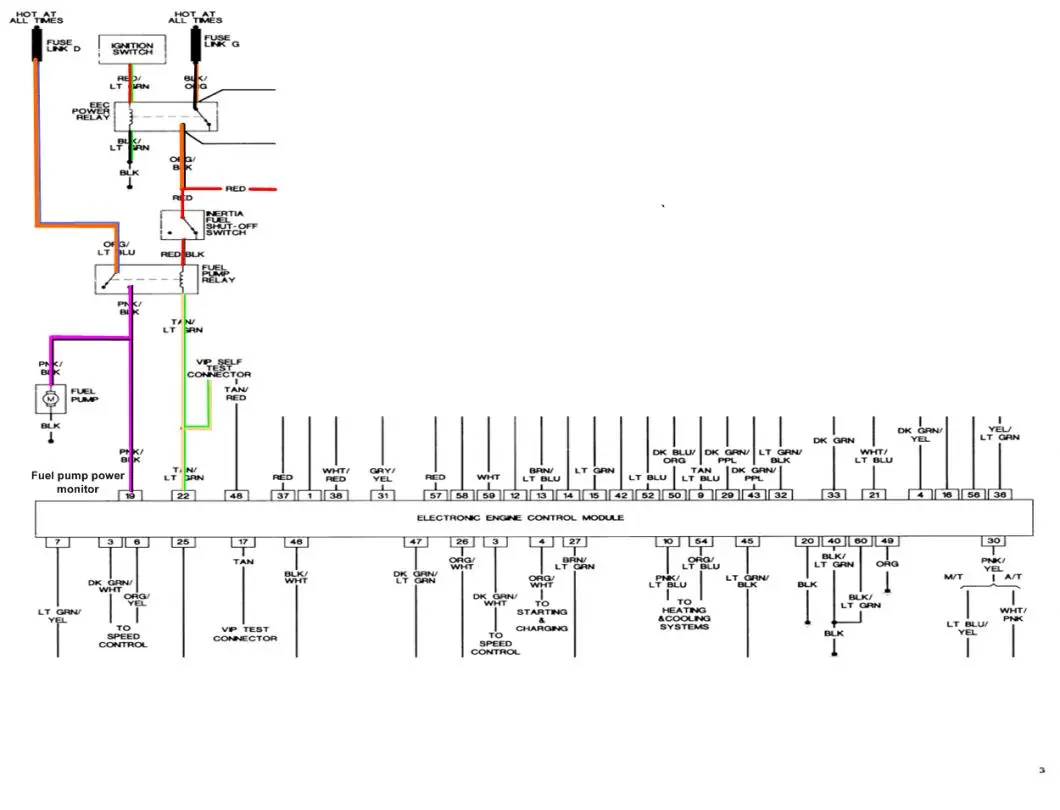

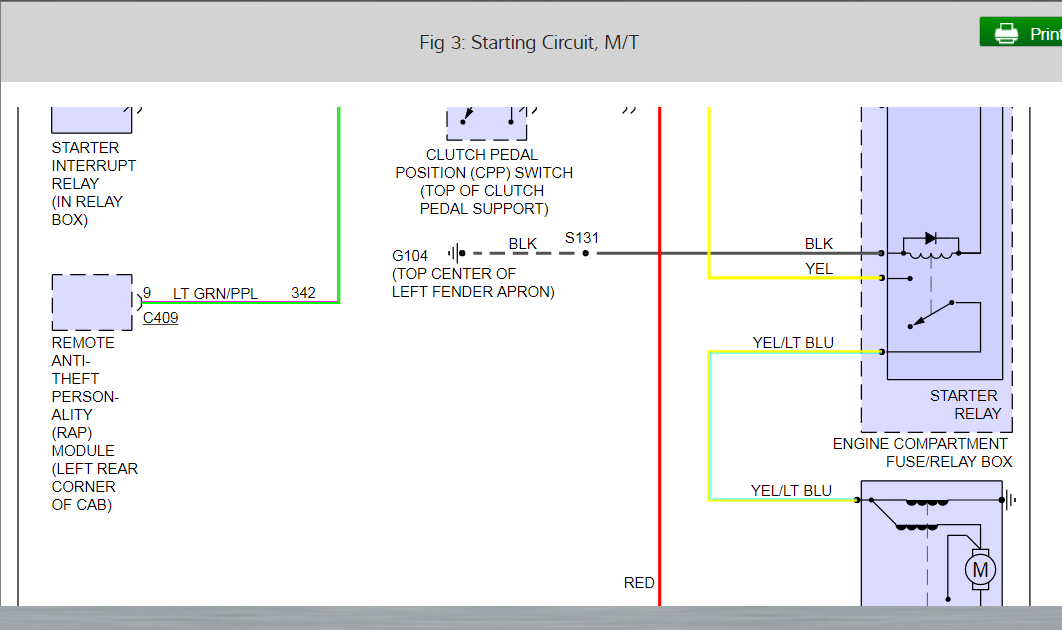

Inertia switch wiring diagram. Have the same problem. It could also be a bad relay as well. Friday may 18th 2012 at 148 am. Ford vehicles diagrams schematics and service manuals download for free. Thanks for the diagram but although you state that it is there the inertia switch is missing. It is a 3 wire switch do you.
Frame coating ground off. It can also be a bad ground on fuel pump. 1957 ford thunderbird wiring diagram 1960 ford falcon 6 cylinder wiring diagram 1960 ford thunderbird v8 1962 ford galaxie v8 wiring diagram 1964 mustang master wiring locator diagram 1965 ford thunderbird convertible tops control diagram 1965 ford thunderbird window controls diagram 1965 mustang. I need a diagram for the inertia switch. Inertia switch wiring diagram. C wire to switched 12v as shown in diagram b.

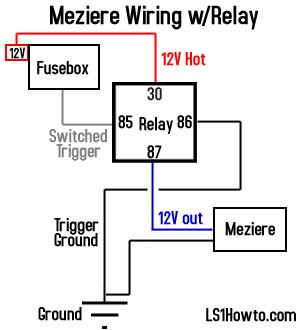

If no power coming out of brown wire at relay try replacing it with a like relay and see if it works. Also i did the 4 generic relays if this helps. Attach the ground wire near the fuse panel to the frame. Does anyone have a diagram on how to wire this in or can tell me that would be great. Are you sure you have the right switch. Either drill a hole remove any frame coating from the.
Deluxe fuel pump wiring with blown engine light circuit above this circuit is similar to the basic wiring diagram the same except you use a different pressure switch and add a warning light that directly watches the oil pressure. Going to add the stock ford inertia switch with the efi conversion. Please read all warning and instructions before installing the inertia switch. Push the inertia switch down to make sure it is on harness ground make sure that any coating on the frame is removed before attaching grounds so that a good contact is made. The inertia switch is a device intended to automatically shut off the supply of fuel to the engine following a heavy impact collision thereby helping reduce the risk of fire. The 3 terminal pressure switch has an extra terminal that can be used exactly like the oil pressure warning light.
I imagine that it is in series with the connection from the fuse box to the solenoid of the cut out relay or from the solenoid of the cut out relay to the oil pressure switch. Running a 91 mustang computer.
