Check the hookup guide below for more information. Fritzing diagram of hx711 amplifier connected to a redboard now if you would like to set up four single load sensors with our combinator board and amplifier connect the five pins labeled red blk wht grn ylw to the matching pins on the hx711.
Fc 1743 Wiring Diagram Further Val Wiring Diagram On Digital
Hx711 wiring diagram. This chip is designed for high precision electronic scale and design has two analog input channels programmable gain of 128 integrated amplifier. Strain gauges with the load cell combinator board. The input circuit can be configured. Black wire to e green wire to a white wire to a. This adc has 16 pins. Pinout diagram shows the pin assignment of each pin.
Sometimes instead of a yellow wire there is a larger black wire foil or loose wires to shield the signal wires to lessen emi. As you can depict from pinout that it has two adc channels and each channel converts an analog signal into a 28 bit long digital value. Load cells use a four wire wheatstone bridge configuration to connect to the hx711. Any microcontrollers gpio pins should work and numerous libraries have been written making it easy to read data from the hx711. Most load cell have four wires red black green and white. Tutorial to interface hx711 balance module with load cell.
As you can see in the connections diagram. Fritzing diagram of hx711 amplifier connected to a redboard. On aluminum load cells multiple strain gauges are already wired together to for a wheatstone bridge. Connect the gnd of the hx711 module to the arduino gnd and vcc to the arduino 5v pin. Red wire to e. The hx711 is a 24 bit analog to digital converter adc.
The red wire of the strain gauge or load cell should be connected with the e pin of the hx711 break out board. Hx711 also works with 33v. Load cell connection diagram and its pinout. Red black. So if you have some other microcontroller that runs on 33v then you can use 33v instead of 5v. Here we have a large black wire some loose wires and foil and loose wires respectively as emi buffers.
The four wires of the load cell or strain gauge are connected with the hx711. On hx711 board you will find e e a a and b b connections. Descriptionthis module uses 24 high precision a d converter. Next connect each of the four load sensors to the following pins. The four wires of the load cell should be connected in the correct way otherwise this will not work. All you need to do is connect the wires to the hx711 board in the correct orientation.

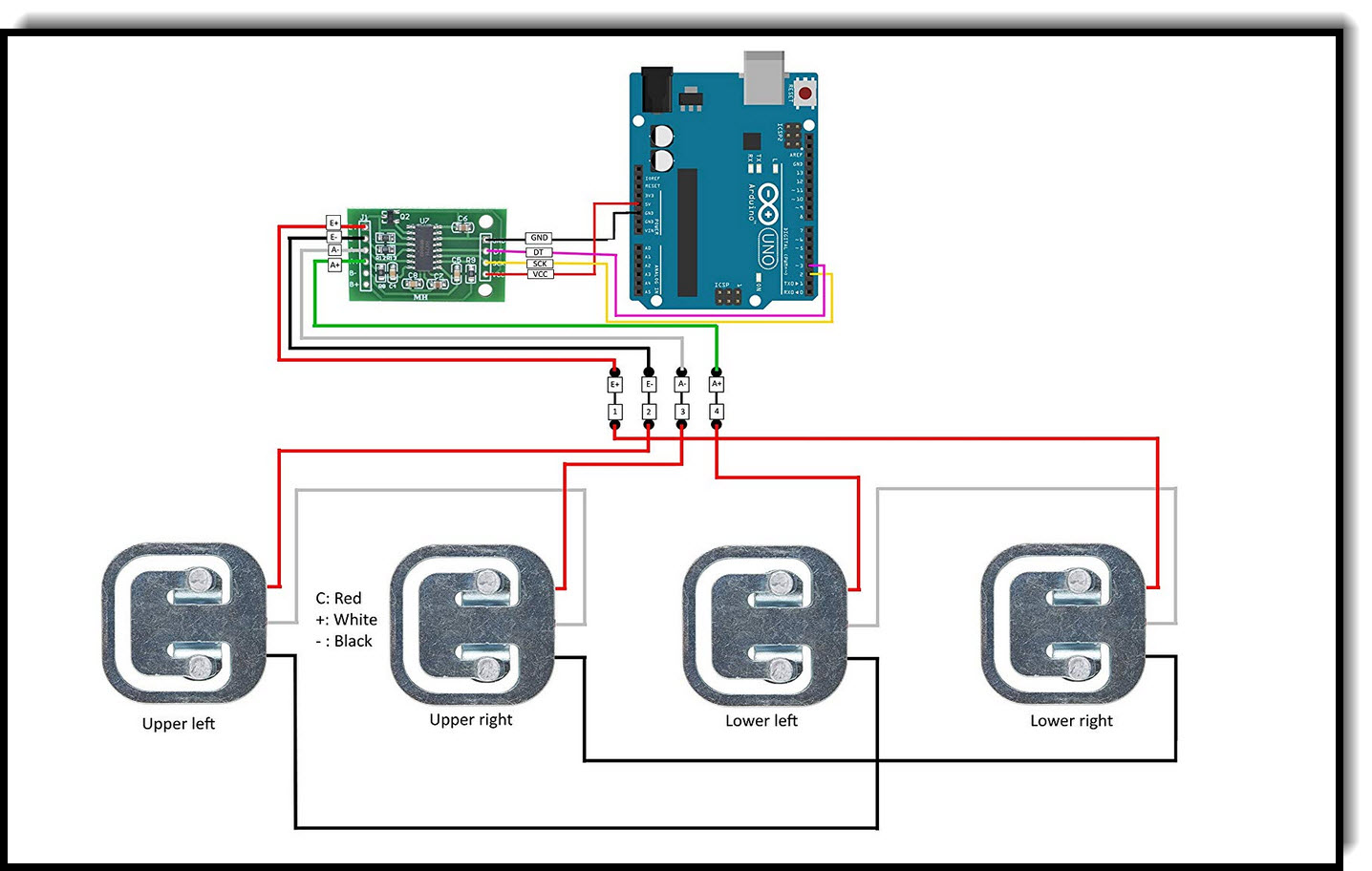

The hx711 uses a two wire interface clock and data for communication. Connect the dt and sck of the hx711 module to any of the arduino digital io pins. See the wiring diagram for how to connect the load cells hx711 and arduino. A load cell or strain gauge has 4 wires the red wire of the load cell is connected with the e black wire is connected with the e the white wire is connected with the a and green wire of the load cell or strain gauge is connected with the a of the hx711 board.
