Do not connect j1 ethernet port to. The evo v2000 handles all online door decisions door input monitoring and output control and reader interface for up to two doors.
Lg E400 Schematic Diagram Diagram Base Website Schematic
Hid v2000 wiring diagram. Serial rs 232 adapter cable pn 70007. A wiring diagram is a simplified traditional pictorial representation of an electric circuit. The hid vertx evo v2000 is a dual reader intelligent controller that can manage a single door two readers or up to two doors one reader per door. Connect the vertx v1000v2000 to the network using a standard cat5 network patch cable. Hid global hid the hid logo iclass and vertx are the trademarks or registered. This vertx installation wiring diagram is intended as an example only and should not be interpreted as an hid corporation recommendation.

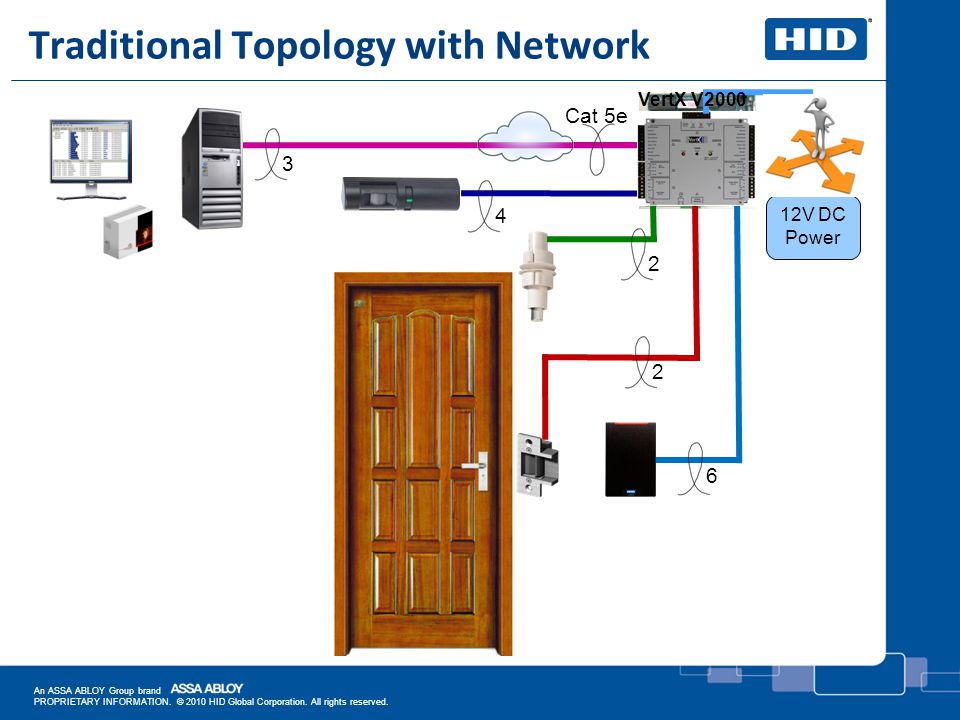

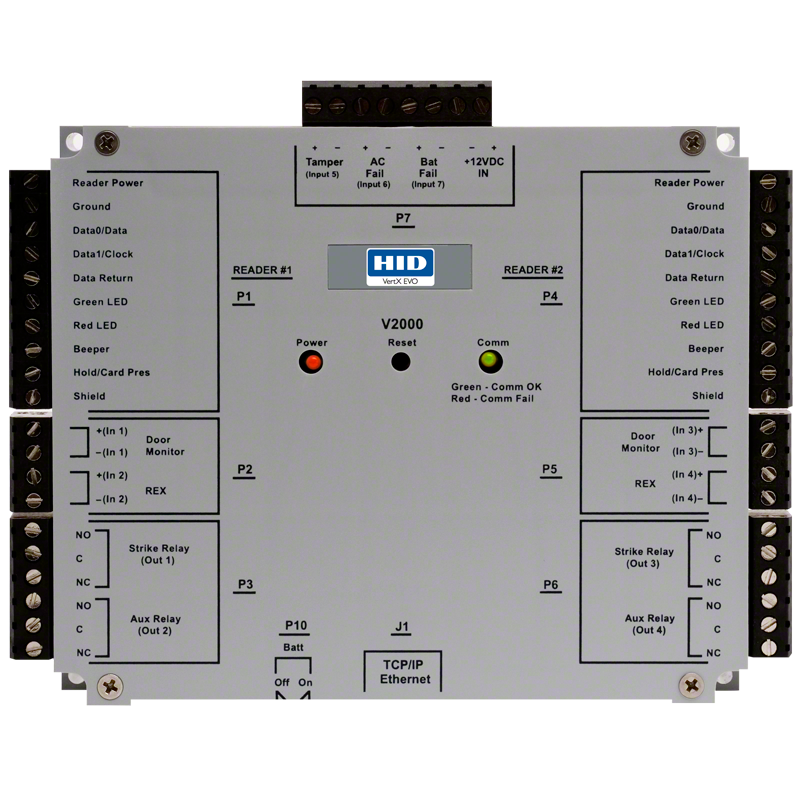

Vertx evo v2000 is a two reader access control panel that enables interface with two doors single reader or one door inout reading. The evo v2000 has two. Vertx evo v2000 is a non poe device. Connect one end of the cat5 network patch cable to the j1 rj 45 connector on the v1000v2000 and the other end to the network connection point network jack hub switch or router on your site. Vertx evo v2000 handles all online door decisions door input monitoring and output control and reader interface for up to two doors. The default settings for all vertx input devices are normally open no except door monitor input which is normally closed nc.
Assortment of hid card reader wiring diagram. It shows the parts of the circuit as simplified forms as well as the power as well as signal links in between the devices. With an onboard database and handling all access control door decisions the v2000 will report events and alarms in real time over any ip network to the genetec synergis ip access control solution. Installation wiring diagram example 1 12 product specifications description specification power supply input. V2000 doorreader interface card in free out most common option. As part of hid globals networked access solutions vertx evo v2000 is a two reader access control panel that enables interface with two doors single reader or one door inout reading.
34 wiring vertx evo warning.
