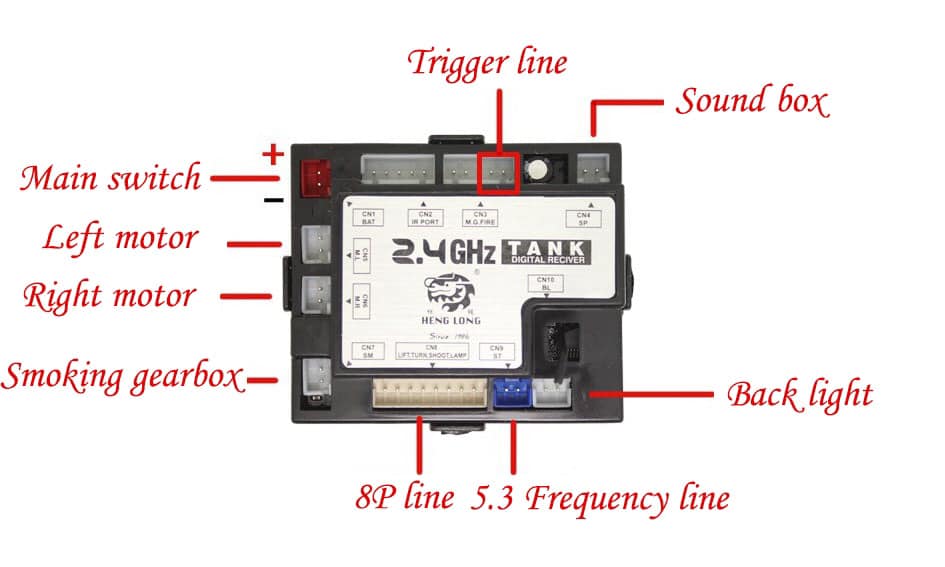

Heng long rx18 wiring diagram. This multifunction board is not plug and play with older 24ghz and rx18 fm crystal equipped tanks. The identifier for this board versus the newer v2 board is the addition of 6 ports on the right side of the board under the port labeled g. If your board picture matches this one then you have the v1 motherboard. Heng long rc tank rx13 to rx18 control board tutorial duration. Dieser 111 teil beschäftigt sich mit dem akutellen heng long rx18 24 ghz. Since the release of the t90 heng long have added and changed some of the features and there for the wiring has also changed.
Wiring diagrams for heng long tank circuits. As far as wiring the onoff switch for your rx18 the switch plugs into the cn1 plug on the rx18 with the red wire on the corner or on the left of the plug and the black wire on the right. The red wire from the rx18 solders onto the middle terminal of your onoff switch the black wire from the rx18 joins the black wire from the battery. Taigen tanks v1 motherboard wiring diagram. Heng long rc tank planer diagram the unit tanks shopping circuit diagram thoughts. Here i have chosen to use a small 3 pin connector readily available from jaycar.
Images view all images in thread. Some features will not work and wiring modification may be needed. Shen rc 21640 views. People also love these ideas. Im workshop wird die 4. Heng long use the same connector as featured on their 3 pin cables so in a pinch you could cut one end off a 3 way cable and solder the wires to the underside of the 8 pin turret connector.

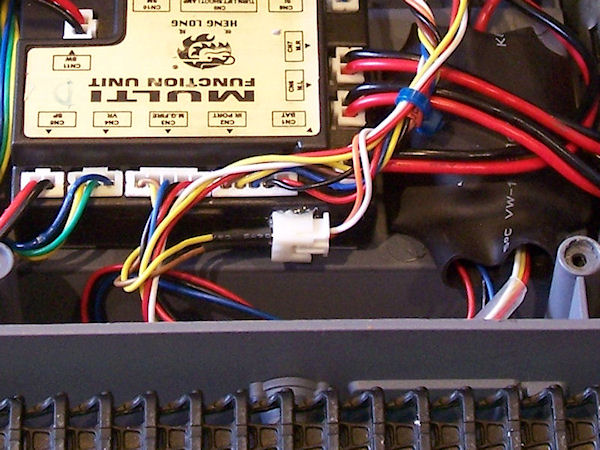

John guess uploaded this image to heng long pz3 project. Saved by kyaw tun. This is the first generation motherboards found in many of our tanks. See the album on photobucket. Rc battle tank motor upgrade duration.
