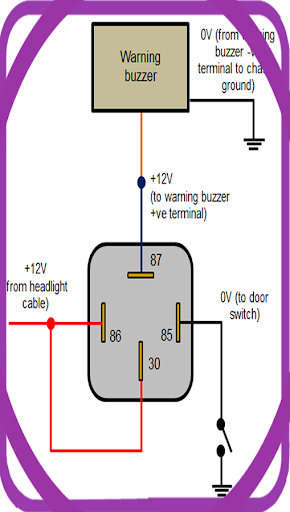

Buy piezo buzzer here httpamznto2gopeaf just a quick how to on making a reminder for headlights being left on while vehicle is not running. The diagram shows the relay pins as viewed from the pin end of the relay.
Back Up Light Wiring Diagram 2000 Mustang Honda 2005
Headlight warning buzzer wiring diagram. In case of emergency the sounders will operate to warn the people around to evocative via general or emergency exit. All that is required is an automotive change over relay and a buzzer. Fire alarm systems are wired in industrial factories offices public buildings and nowadays even in homes. But this circuit will be warning a car driver for instantly knowwhen we forget to open the car door or forgetting to. On the way home there was a bit of fog but otherwise daylight. Arriving home we unloaded cleaned up and left the lights on to fully drain the battery just for good measure.
Different types of fire alarm system such as conventional addressable intelligent and smart wireless designs are used for the same purpose ie. Turned on the lights for safety. It requires an automotive relay readily available at automotive supply stores and a 12 volt pezio buzzer from radio shack. It costs less than 1000 is easy to make and very effective. More about graydog111 this is a wiring diagram for a headlight reminder to tell you that you have left your lights on when you turn your ignition switch off. Sooooo after a new battery and day of kicking my own posterior i went online to try and find a 3rd party headlight alarm.
Headlight warning buzzer by circuit diagram oftenwe find that a lot of motoristthey have forgotten to turn on light in a car when parkingthen back to start the machineit did not workbecause a battery did not have a energy. If preferred the headlight power connection could be connected to park light power instead which will alarm if headlights or park lights are left on.
