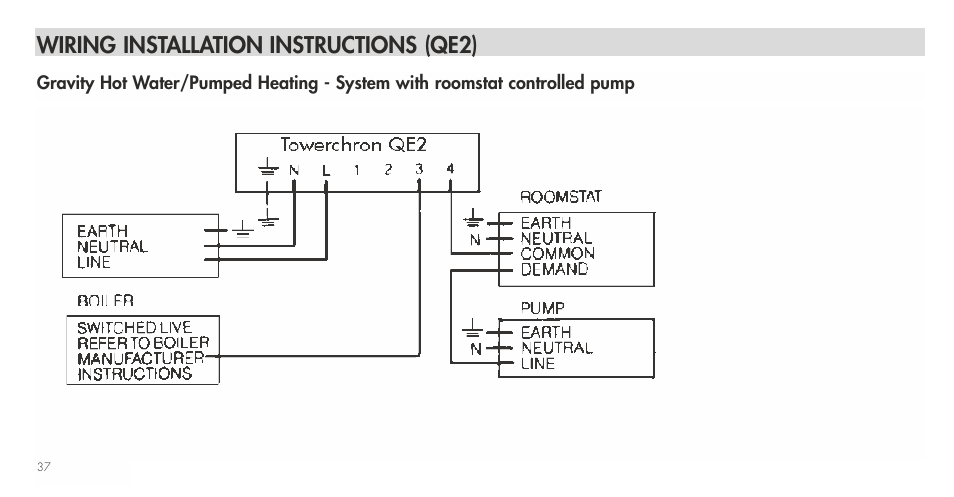

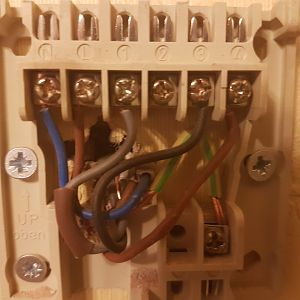

Grasslin towerchron qe2 wiring diagram. Page 19 internal wiring diagram qe1 nb carry out wiring installation using appropriate diagram as shown. Grässlin uses cookies including third party cookies to collect information about how visitors use our website. Plumbing and central heating. Nb when the towerchron qe1 timeswitch is to be used with a combination boiler always refer to the boiler manufacturer instructions concerning wiring before using the information contained in this manual. 3the timer wiring is integral to the boiler and connected to a terminal blockdiscard the terminal block once the wiring is removedconnect the black wires to terminals 3 and 4blue to terminal 2 and brown to terminal 1 of the timerinsert the timer into the control panel and secure with the cover and screws previously removed fig1. Nb when the towerchron qe1 timeswitch is to be used with a combination boiler always refer to the boiler manufacturer instructions concerning wiring before using the information contained in this manual.
Swoop 18 sep 2011. Grasslin towerchron qe2 the black wire not connected. Grasslin towerchron qe1 qe2 installation user instructions. View online or download grasslin towerchron qe2 installation users instructions. Nds 19 apr 2010. Nb carry out wiring installation using appropriate diagram as shown.
Plumbing and central heating. Grasslin towerchron qe2 pdf user manuals. Dejjones 8 feb 2009 in forum. Central heating forum. They help us give you the best possible experience and continually improve our site. Plumbing forum plumbing advice.
Grasslin towerchron qe1 qe2 installation and user instructions. Grasslin qeg2 programer not working. The following wiring diagrams are schematic only for clarity the earth and neutral connections are omitted we suggest when wiring systems a suitable wiring centre is used the tower controls wiring centre is purpose made and gives full information for wiring this programmer into systems using compatible equipment towerchron qm2 earth. Nds 18 apr 2010 in forum. Grasslin towerchron qe1 qe2 installation and user instructions instructions manuals grasslin towerchron qe1 qe2 installation and user instructions.
