Wiring a gfci receptacle is a little more complicated than hooking up a regular outlet but easily learned once explained. If you are replacing an existing gfci outlet with a new one we suggest that you read our page about replacing a gfci outlet.
Wiring Diagrams For Gfci Outlets Do It Yourself Help Com
Gfci multiple outlet wiring diagram. You can also learn about wiring gfci outlets in the following 7 steps. How to wire gfci combo switch and outlet gfci switchoutlet wiring diagrams. The neutral and ground wires are spliced together and run to each device in the circuit. Wiring a gfci outlet with a light switch. Fully explained wiring instructions complete with a picture series of an installation and wiring diagrams can be found here in the gfi and light switch area here in this website. The hot source is spliced to the line terminal on the receptacle and to one terminal on the light switch.

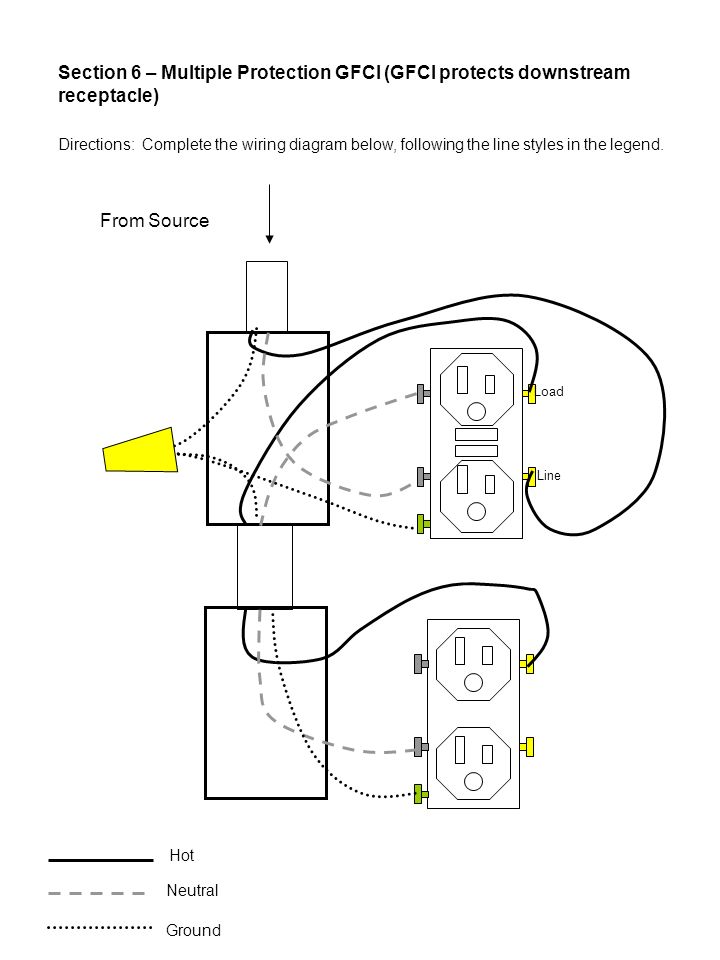

The above diagram shows the gfci wiring to multiple outlet as in white while the pictures are same. The electrical calc elite is designed to solve many of your common code based electrical calculations like wire sizes voltage drop conduit sizing etc. Multiple gfci outlet wiring diagram pdf 72kb back to wiring diagrams home. This diagram illustrates wiring a gfci receptacle and light switch in the same outlet box a common arrangement in a bathroom with limited space. Just click the wiring diagrams wiring a gfci outlet with a switch how to wire a gfci outlet with a switch there are a few different methods that are used to. One side of the gfci connected to the ground neutral wire as shown white in the diagram and another side to the high potential hot wire shown as black in the diagram shows as in black color.
In the first diagram the single way switch and light bulb is connected to the load terminal of gfci. Multiple gfci outlet wiring diagram. This way the switch and light bulb is gfci protected. Click the icons below to get our nec compliant electrical calc elite or electric toolkit available for android and ios.
