How to replace a fox body mustang alternator duration. Take a few heavy duty zip ties to secure the harness up and out of the way of the fender liner.
Sbc Alternator Wiring In Fox Body Mustang Ls1tech Camaro

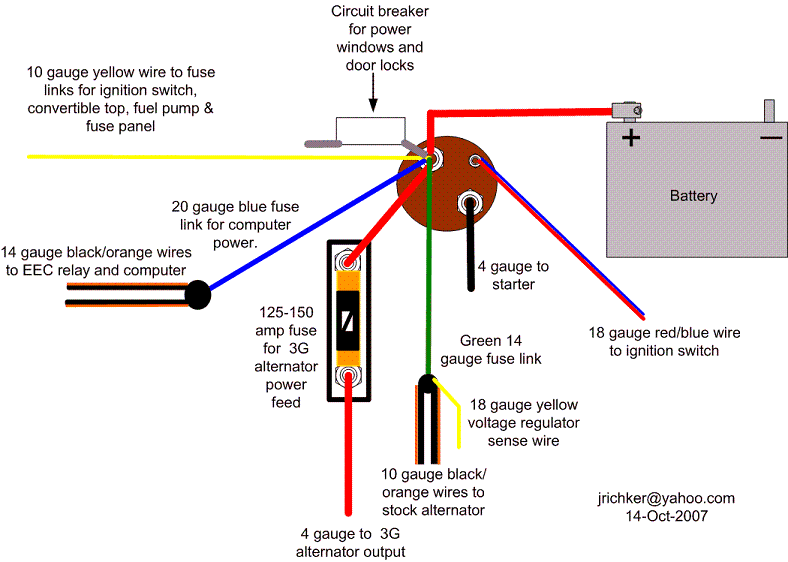

Fox body alternator wiring diagram. 1979 wiring diagram 12mb 1980 wiring diagram 12mb 1981 wiring diagram 13mb 1982 wiring diagram 12mb 1983 wiring diagram 11mb 1984 wiring diagram 1. The diagrams have been scanned from the originals which were on sheets approximately 12 x 24. It acts as volt meter signal and is also the alternator turn on wire ignition switched hot stock the black with orange wires v into one wire and go to the solenoid switch on your strut. Thus when each sheet is initially opened the quality may seem poor until the image is zoomed. Stock the yellow wire goes from the asi connector to a 12v source down stream used as a volt sensing circuit stock the green wire runs through gauge. Foxbody starter wont stop cranking.
The only new wire you need to run is the 4ga battery cable from the alternator to a fuse box or circuit breaker and to the starter solenoid. Give your fender aprons and strut towers a good cleaning. You should use a boot to cover the battery cable on the alternator to prevent potential unforeseen sparks in the future. Alternator basics tips tricks 1 wire models of gm. This is a short video of the fox body mustang 3g 130 amp alternator conversion from the stock trim 75 amp alternator. What it looks like installed below.
Wipe everything down then hit them with a quick detailer or wax to bring back a. This shows how its wired with no confusion. This is exclusively for 87 93. Plug all of your wiring back together and run your alternator wiring back to the engine bay.
