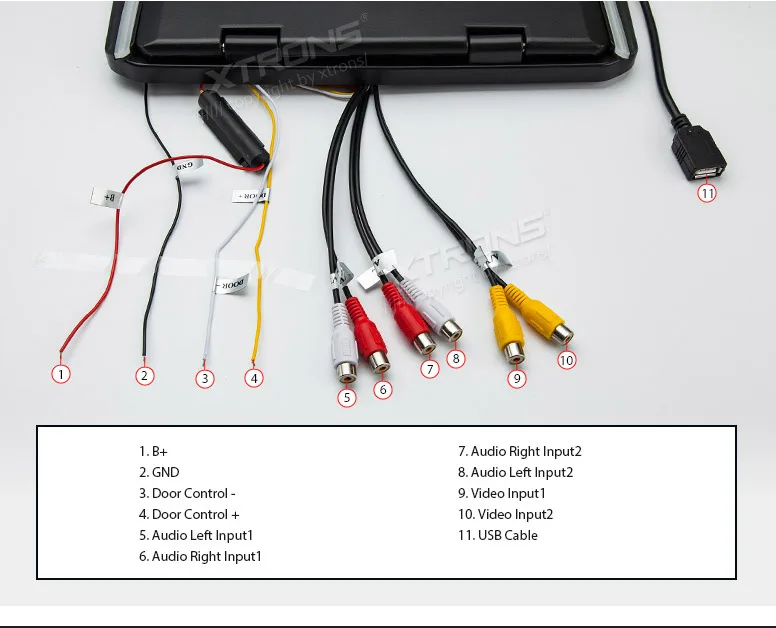

Flip down monitor wiring diagram. Again verify that the bracket. I couldnt find a straight answer on how to identify which trigger wire to use or even how to find what to wirek it to. 3connect the wiring harness according to the diagram under connection diagramon the following 4flip the monitor screen down and dvd. The flip down monitor is the biggest screen available for car dvd players and some of them even include dual lights. Installing a flip down monitor in your vehicle for your dvd player is one of the latest technologies out there and nowadays it seems people are looking for the best ones. Ran into an issue when installing my new dvd player.
Installation of flip down monitor step 7 carefully route your wire using the equipped wiring run your wire from the base of the pillar cover through the headliner to the flip down monitor. Use your pick to carefully pry the dome light from the headliner. Once the dome light is removed you will want to check for a metal reinforcement plate. Installing this type of monitor gives you a lot of benefits. The metal sunroof reinforcement plate is where you will attach the monitor mounting bracket to the vehicle. Pulling the dome light down to expose the the dome light wiring.
Then carefully mount the bracket using screws that are short enough not penetrate the roof of the vehicle.
