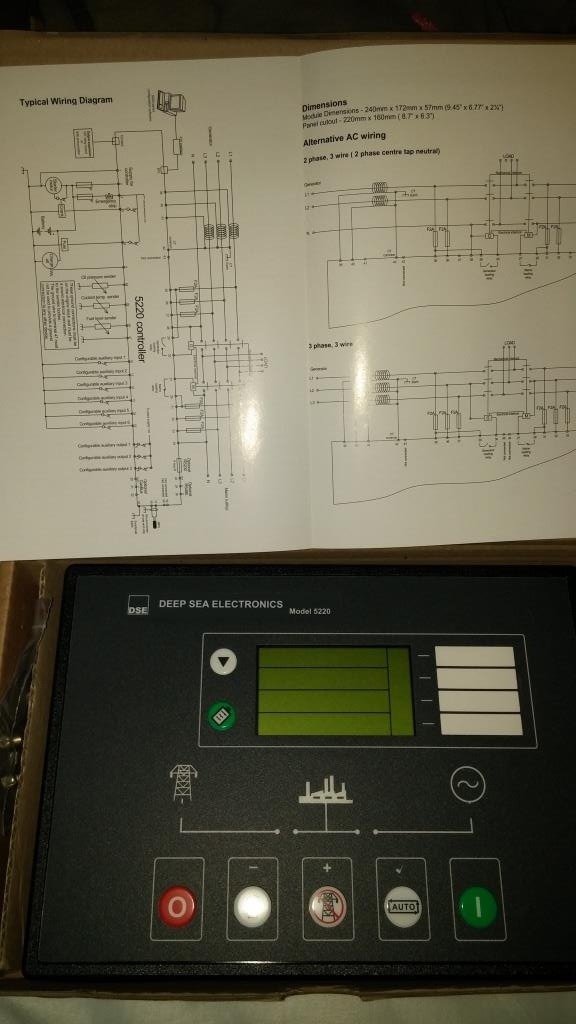

Deep sea 5220 wiring diagram. If another system is to be used the controller must be reconfigured using the 5200 series configuration software. Cookies on the deep sea electronics website. The module has b. Dse 7320 arenewcontrolmodulesforsinglegen set applications. The module also provides excellent engine monitoring and protection features. Dse model 5220 automatic mains failure instrumentation system operators manual 2 057 012 5220 operating manual issue 51 18062007 am deep sea electronics plc highfield house hunmanby north yorkshire yo14 0ph england sales tel.

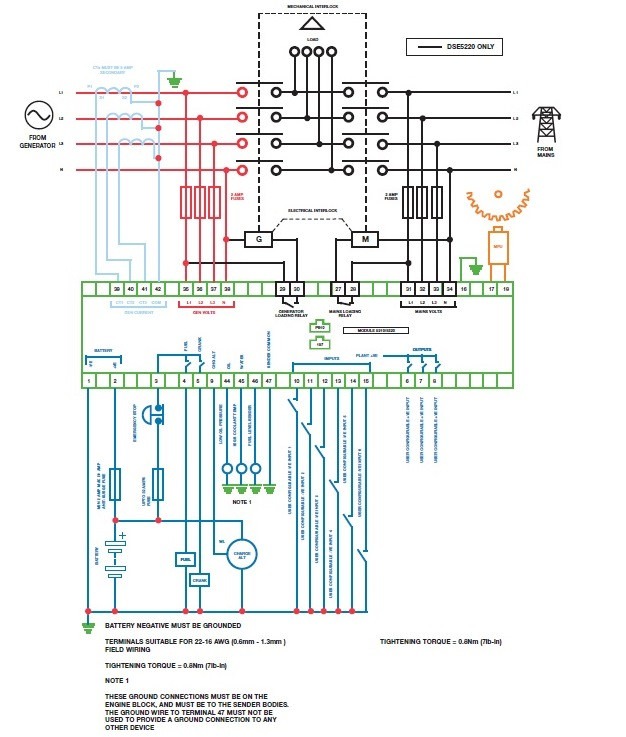

Changes to this typical wiring diagram for other ac systems are detailed below. Deep sea electronics plc 5220 installation and configuration instructions. The dse5220 is an automatic mains failure control module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. Dse 7320 is an auto mains failure amf control module able to monitora mains. Note the factory default configuration for the 5210 module is for use with the 3 phase 4 wire ac system. The dse5520 is an automatic mains failure control module designed to provide advanced load share functionality for diesel and gas generating sets that include non electronic and electronic engines.
Y training document recommended practices for wiring resistive sensors english y training document. Manual 61 pages. 44 0 1723 893303 e mail. The module has the ability to monitor under speed over speed charge failure emergency stop low oil pressure high engine temperature fail to start. Sw 2 g g rsmr dwa g52 i gw wg gw g eg g d. 0 a52 i g m 5 0 a52 i g ba g g g i gw g5g mg d 2 w.
The module also provides excellent engine monitoring and protection features. Page of 2. Recommended practices for wiring resistive sensors language. Document providing recommended guidelines for wiring resistive sensors to dse modules and examples of common mistakes made when doing so. The module monitors the mains utility supply and upon detection of a loss in power automatically starts the generating. Also see for 5220.
Page 2 typical wiring diagram dimensions module dimensions 240mm x 172mm x 57mm 945 x 677 x 2¼ panel cutout 220mm x 160mm. 44 0 1723 890099 sales fax.
