It contains guidelines and diagrams for different kinds of wiring techniques and other things like lights windows and so forth. When the helm control is pressed the trim tabs move up or down.
My 5085 Bennett Trim Tab Pump Wiring Diagram Free Diagram
Bennett trim tab wiring diagram. 6 bennett marine bolt electric trim tab system how trim tabs work bennett trim tabs most often attach to the bottom edge of the transom although other mounting variations are available. The port trim tab lowers the starboard bow and the starboard trim tab lowers the port bow. Bennett marine trim tabs help you get on plane faster correct. Bolt129 bolt189 bolt249 bolt1212 bolt1812 bolt2412. The trim tab surface creates upward pressure raising the stern and lowering the bow. Orange with 20 amp fuse 12 volts positive.

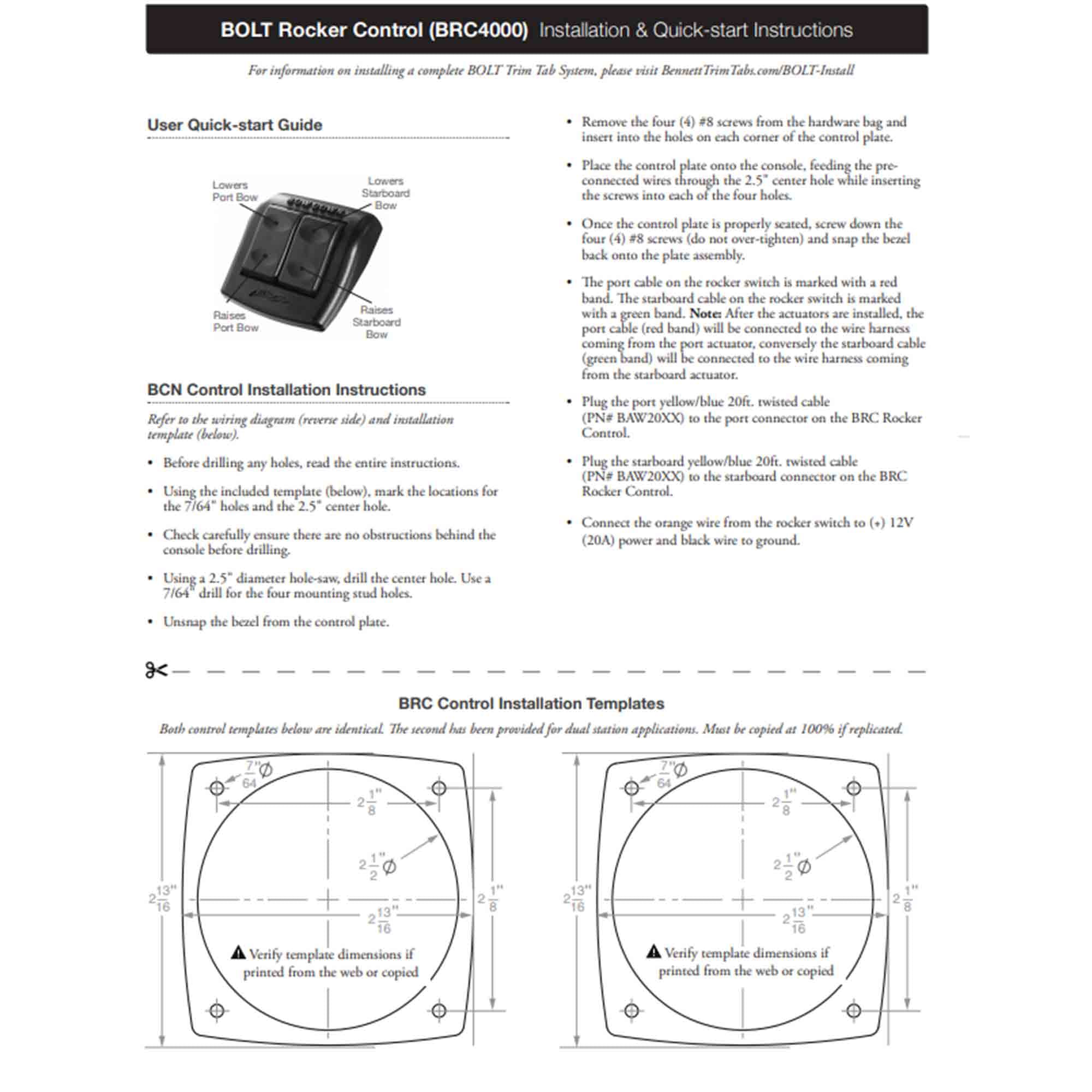

Bolt electric trim tab kits. Bcn6000 installation instructions bolt system installation manual bolt system wiring diagrams. The above wiring is recommended. How trim tabs work bennett trim tabs are attached to the bottom edge of the transom. It shows the components of the circuit as simplified shapes and the facility and signal links amongst the devices. Blue pump pressure trim tabs down yellow pump retract trim tabs up red port valve.
Bolt electric standard helm control. Properly sized trim tabs improve the performance of your boat by adjusting the running angle of your vessel. Bennett hydraulic trim tab wiring diagram wiring diagram is a simplified normal pictorial representation of an electrical circuit. Bennett trim tabs wiring diagrams manual e books bennett trim tab wiring diagram wiring diagram contains several comprehensive illustrations that show the relationship of assorted products. When the helm control is pressed the trim tabs move into position. Water force on the trim tab surface creates upward pressure raising the stern and lowering the bow.
Water force on the trim tab creates an upward pressure raising the stern and lowering the bow. If the operator prefers different action from the control and tabs it can be changed as desired. Bolt system wiring diagrams. Properly sized trim tabs improve the performance of your boat in a wide. Bolt system installation manual bolt system wiring diagrams. 550 jim moran blvd.
Green starboard valve.
