The ignition power source of most gm vehicles keep the radio on until one of the doors is opened. Axxess gmos 04 wiring diagram regarding axxess gmos 04 wiring diagram image size 1024 x 764 px and to view image details please click the image.

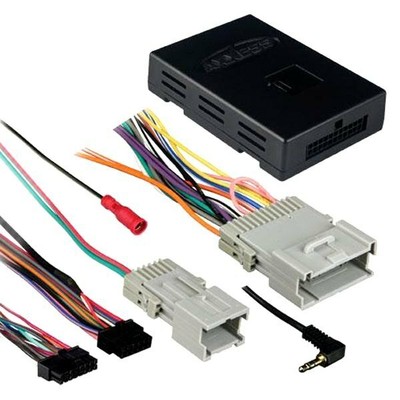

Axxess Gmos 04 Wiring Diagram Axxess Gmos 04 Gmos04 Onstar
Axxess gmos 04 wiring diagram. Gmos 04 5 installing the gmos 04 with the key in the off position. Axxess is now shipping new plug n play dsp packages bluetooth and toslink accessories metra electronics hosts ibeam heise axxess training sessions at knowledgefest 2020 in long beach axxess introduces axtc total control interfaces for bmwmini cooper gm and mercedes. This is called the rap. If using the aswc 1 connect it after you initialize and test the gmos 04 with the key in the off position. Plug the 14 pin harness into the gmos 04 the blackyellow wire is for the onstar volume adjustment. Before beginning any of the following disconnect the negative battery terminal to prevent accidental short circuit.
Gm data interface 2000 2013. Aftermarket wiring harness axxess xsvi 9003 nav interface duration. Gmos 04 2 wiring up the gmos 04 important. Connect the 16 pin harness with stripped leads and the gmos 04 harness into the interface. The gmos 04 is designed to retain this feature. 4 gmos 04 from the 24 pin harness.
Reconnect the negative battery terminal. Luis porras 29463 views. Cycle the key by turning the ignition on for 30 seconds. Connect the gmos 04 harness to the wiring harness in the vehicle. Connect the yellow wire to the radios 12 volt battery or memory wire. Gmos 04 installing the gmos 04 with all connections completed to the aftermarket radio plug the 24 and 12 pin harnesses into the vehicles wiring harnesses.
2006 yukon denali aftermarket stereo install gmos 04 duration. Then off and on again to test the radio. Connect the black wire to the radios ground wire. Axxess gmos 04 wiring diagram in axxess wiring diagram by admin from the thousands of photographs on the web in relation to axxess wiring diagram we all choices the top selections together with best resolution exclusively for you and this pictures is actually one among graphics choices inside our very best images gallery in relation to axxess wiring diagram. Buick century 2004 2005 lacrosse 2005 2009 rainier 2005 2007 rainier 2004 2004. This will be discussed in.
Buick century 2004 2005 lacrosse 2005 2009 rainier 2004 2007 regal 2004 rendezvous 2002 2007. Gm 2000 2013 class 2 data interface. Here is a picture gallery about axxess gmos 04 wiring diagram complete with the description of the image please find the image you need.
