Avr sx460 wiring diagram. Generator automatic voltage regulator operation manual self excited automatic voltage regulator compatible with newage sx460 use for reference purpose only and not a genuine newage product. Incorrect wiring check wiring diagram for proper connection powersensing or field wires not connected. Sx460 avr controls 32 initial avr setup notice the avr must be setup only by authorised trained service engineers. Stamford generator wiring diagram new sx460 avr pdf incredible. The objective is the very same. Sx460 refer to generator wiring diagram for connection details.
The avr is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage. In addition to regulating the generator voltage the avr circuitry includes underspeed and sensing loss protection to ensure. Obtaining from point a to point b. Sx460 avr wiring diagram sample 45 best avr circuit diagram pdf. Stamford sx460 automatic voltage regulator. A wiring diagram is a streamlined standard photographic depiction of an electric circuit.

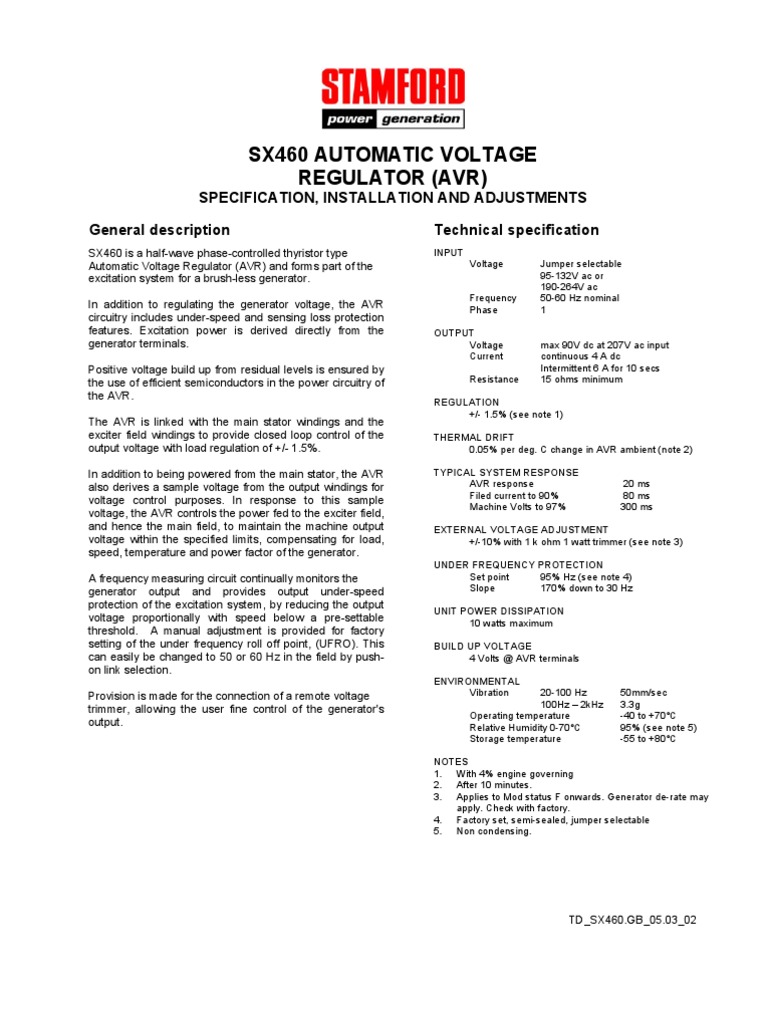

Refer to alternator wiring diagram for connection details. Newage dm710 digital excitation control system. Collection of sx460 avr wiring diagram. Sx460 automatic voltage regulator avr. Show footer hide footer. General description technical specification sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator.

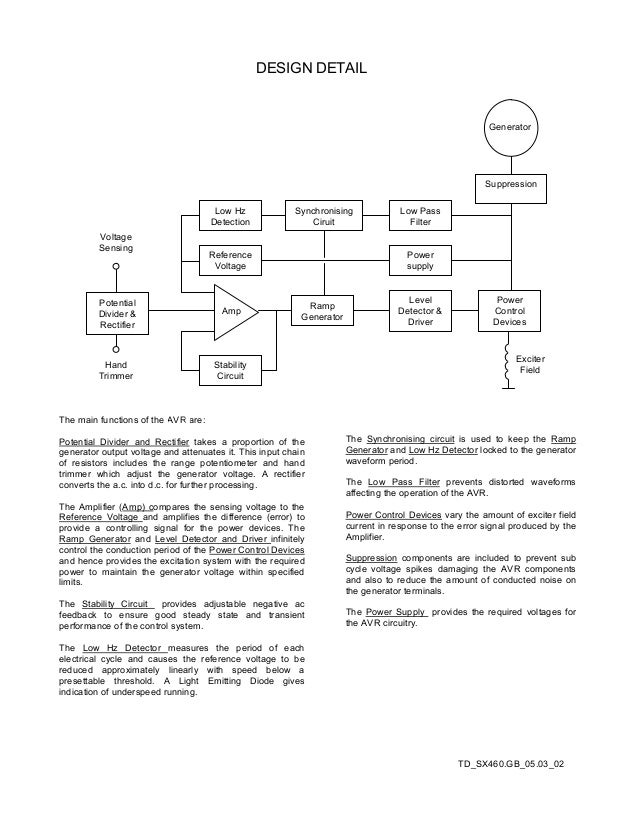

Literally a circuit is the path that allows electrical power to flow. The sx460 is an analogue 2 phase sensing self excited automatic voltage regulator avr. The sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brushless generator. General description technical specification sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator. Control function turn potentiometer clockwise to. Refer to generator wiring diagram for connection details.
Sx460 avr wiring diagram a novice s overview to circuit diagrams a first look at a circuit representation might be complicated yet if you can review a subway map you can read schematics. It reveals the elements of the circuit as streamlined forms as well as the power and signal connections in between the tools. Sx460 automatic voltage regulator avr. A043y696 issue 2 5 ref. Shaluo nice sx440 alternator internal avr circuit diagram of. The sx460 is most commonly used on our uc range and are supplied as standard to the uc22 and uc27 alternators.
